6.3mm/8.0mm Panel Cut Out, 7.6mm/9.5mm/10.0mm Bezel, LED Lampholders

1047 / 1048 / 1050 Range

Indicators

    • Range of 3mm and 5mm LED lampholders
    • Choice of:
    • Lampholder only or lampholder with LED fitted
    • Body: Chrome Plated Brass, Black Oxide Coated Brass
    • LED size and profile: 3mm LED (1047 Series), 5mm Prominent LED (1048 Series), 5mm Recessed LED (1050 Series)
    • IP67 Panel Sealed versions available for both Series (supplied complete with gaskets/'O' rings)
    • For lampholders with LED fitted, choice of:
    • Termination: Wire Leads or LED Leads only
    • Operating voltage: 6VDC, 12VDC, 24VDC or with no resistor fitted; see data for ratings to enable calculation of suitable series resistor value for application
    • LED colour: Red, Yellow, Green, Blue
    • High Intensity LED fitted as standard, Super Bright option available
Product Downloads Product Certificates

Part number builder

Make one selection from each category to define part number



  • Termination



    Select

    1

    A - Holder Only (No LED Fitted)

    Must select No LED Fitted for LED Colour and LED Voltage

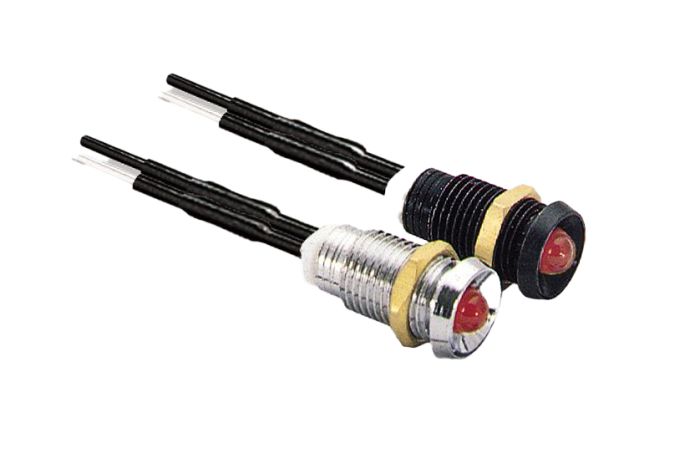

    L - Wire Leads

    W - LED Leads only

  • Body



    Select

    2

    1047 - 3mm LED Indicator

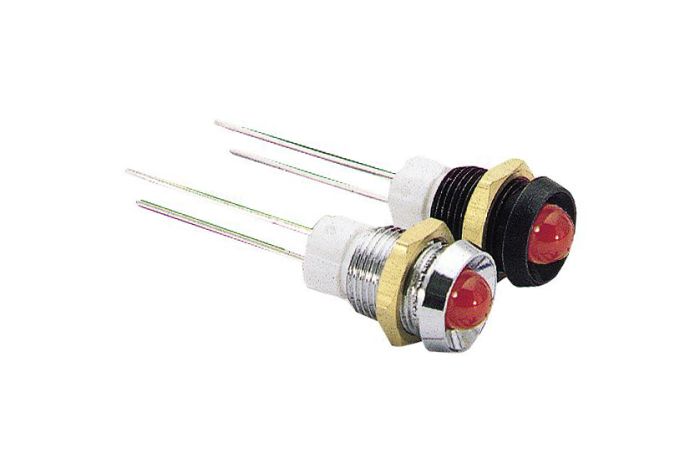

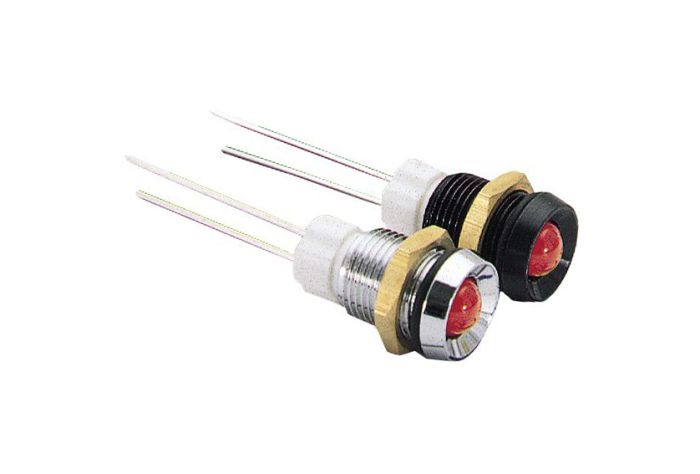

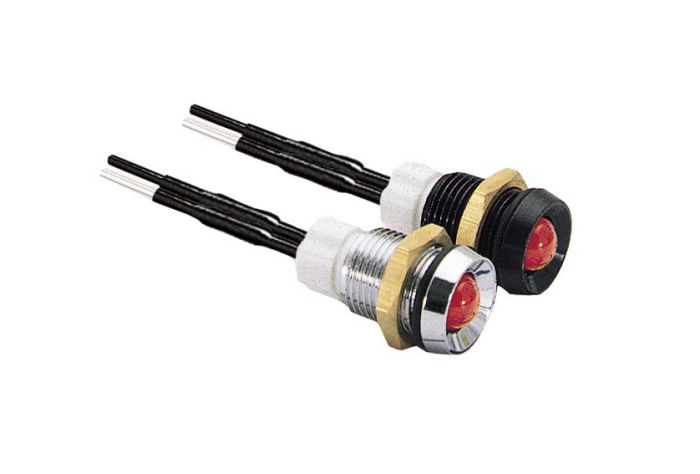

    1048 - 5mm Prominent LED Indicator

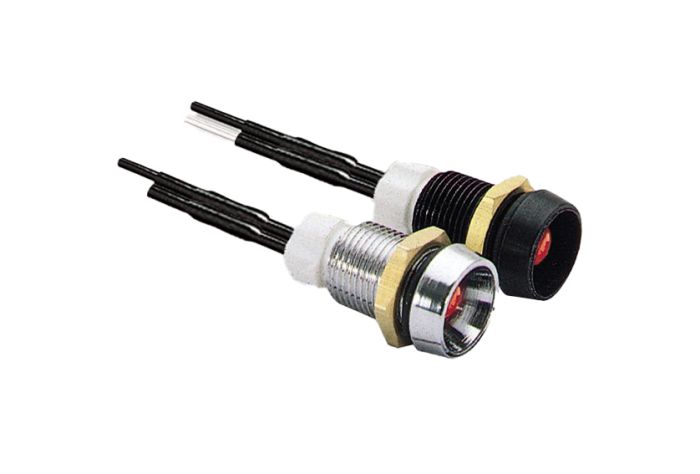

    1050 - 5mm Recessed LED Indicator

  • Sealing



    Select

    3

    Not Panel Sealed

    S - IP67 Panel Sealed

  • Body Finish



    Select

    4

    B - Black

    C - Chrome

  • LED Colour



    Select

    5

    No LED Fitted

    Must select when Holder Only (A) selected

    B - Blue

    G - Green

    R - Red

    Y - Yellow

  • LED Voltage



    Select

    6

    No LED Fitted

    Must select when Holder Only (A) selected

    1 - LED Only (No Series Resistor)

    2VDC-2.2VDC working voltage. Use appropriate external circuit for desired operating voltage

    4 - LED 6VDC

    5 - LED 12VDC

    6 - LED 24VDC
