Flex Cable Connector

PXP6010 / PXM6010 Series

    • Flex Cable Connectors
    • Water and dustproof to IP66, IP68, IP69K when mated with compatible connector
    • 30 degree push twist locking, tamperproof lock prevents accidental un-mating
    • Plug or Socket
    • 2, 3, 4, 8, 16, 22 Contact with leading Earth contact on 3 Contact versions
    • Screw, Crimp/Solder terminations available, depending on part code; Screw contacts supplied fitted, Crimp/Solder contacts and fitting tools available separately
    • Choice of body material depending on part code:

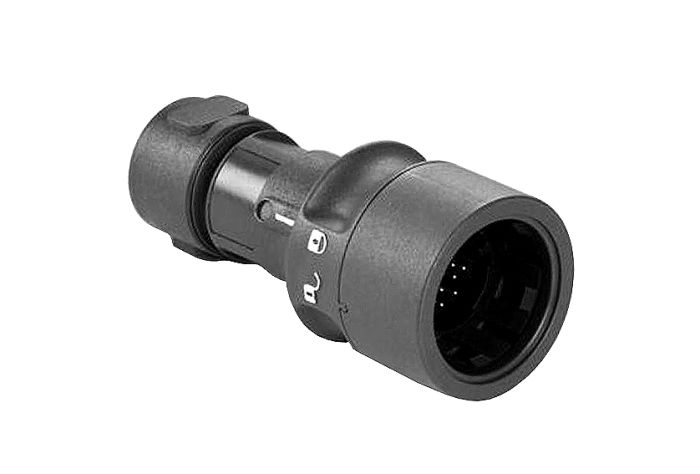

    • Plastic body (part codes prefixed PXP)

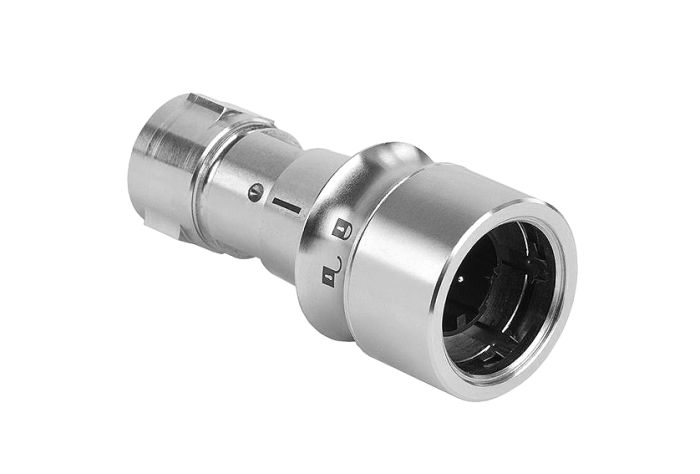

    • Metal body (part codes prefixed PXM). Cable Braid Termination option supplied with part codes suffixed /SN or available separately (part code PXM6090)
    • Choice of cable acceptance 4mm-10mm diameter depending on part code (see data for details)
    • Gland Pack PXP6088 available separately to accomodate all sizes
    • PXP6081/PXM6081 Sealing Cap available separately to maintain IP rating of unmated connectors
    • Mate with PXP6011/PXM6011 Series Inline and PXP6012/PXM6012 Series Front Panel Mount Connectors
