12.7mm Panel Cutout Snap Action Push Button Switches

    • Snap Action Push Button Switches
    • Slow Make and Break, self-wiping contacts
    • 6.3 x 0.8 QC Termination
    • Choice of:
    • Actuator button: Rectangular Bezel, Short Round, Large Round With Satin Chrome Bezel, Large Round With Nylon Bezel
    • Actuator colour: All Actuators available in Black, Red. Large Round With Satin Chrome Bezel, Large Round With Nylon Bezel versions also available in White, Green, Blue
    • For information about custom body and Actuator colours for large orders, please contact Sales
    • Also available in Vandal Resistant version with Stainless Steel Actuator button and bezel (C0911VA)

Part number builder

Make one selection from each category to define part number



  • Termination



    Select

    1

    C - 6.3 x 0.8 QC

    Must select

  • Switching



    Select

    2

    0911 - Single Contact ON ON (Momentary 1 Side)

    Must select

  • Actuator



    Select

    3

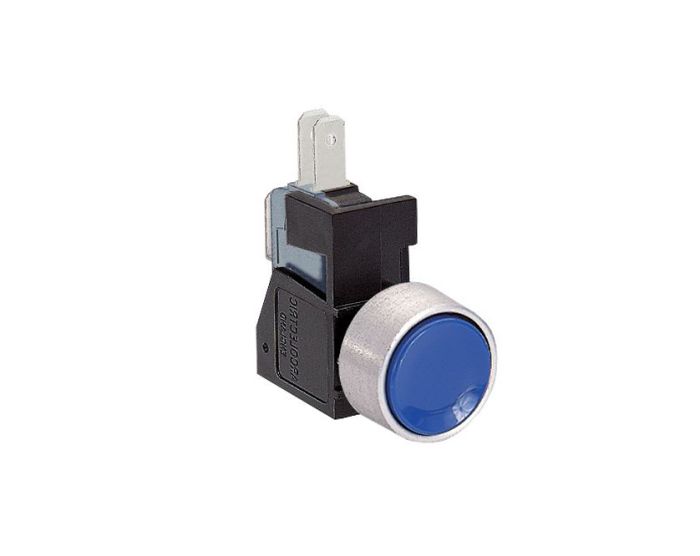

    K - Large Round With Satin Chrome Bezel


    N - Large Round With Nylon Bezel

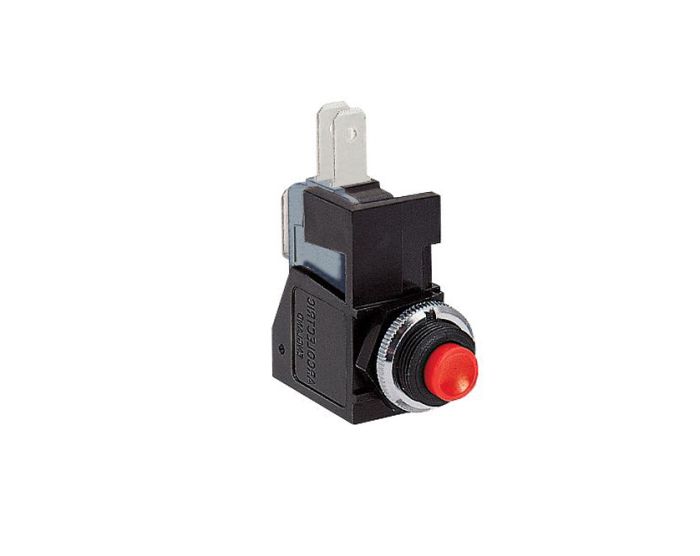

    P - Short Round

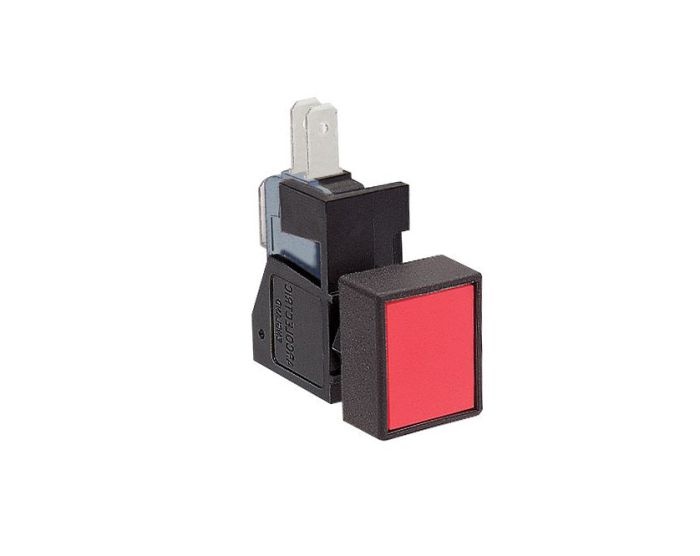

    R - Rectangular Bezel

  • Actuator Colour



    Select

    4

    B - Black

    Available for all Actuator selections


    BL - Blue

    Only available when Large Round (K, N) Actuator selected


    G - Green

    Only available when Large Round (K, N) Actuator selected


    R - Red

    Available for all Actuator selections


    W - White

    Only available when Large Round (K, N) Actuator selected

  • Body



    Select

    5

    B - Standard

    Always select

3D CAD Models
