Circular Data Connectors
The dust and waterproof Data Buccaneer range includes a wide variety of sealed circular connectors
designed specifically for Ethernet, USB (including mini-usb and micro-usb), USB-C and SMB applications.
Our sealed RJ45 Ethernet connector solutions meet Cat 5e requirements for data rates up to 100Mhz
and are suited to a wide variety of industrial & harsh environment applications.
Circular Data Connectors
Specifications600 Series  | Standard Series  | 6000 Series  | 20/30 Series  | 4000 Series  | 400 Series  | AO Series  | |
|---|---|---|---|---|---|---|---|
| IP Rating | IP68 | IP67, IP68 & IP69K | IP68, IP69K | IP67 | IP66, IP68, IP69K | IP68, P69K | |
| Data Cable Type | Standard RJ45 cable to be sourced | Single and double ended cables | PUR / PVC Jacket on cable | Molded backshells for durability | Overmoulded cables | Re-wireable or over moulded | Hybrid type cable with OM3 fibre & copper wire |
| Locking Style | Screw Thread | Screw Thread | 30° Turn | Screw Thread | Bayonet | Screw Thread | |
| Data Type | Ethernet | Ethernet, HDMI, USB | Ethernet, HDMI, USB | HDMI, USB | Ethernet, USB C-Type, USB | SMB, C-Type USB, Mini USB | HDMI, USB |
| View Series | View Series | View Series | View Series | View Series | View Series | View Series |
600 Series Data Buccaneer
600 Series Ethernet Buccaneers are designed to withstand harsh environments, such as outdoor, and industrial. They are IP68-rated connectors and come with shielded and unshielded versions. Designed for integration.

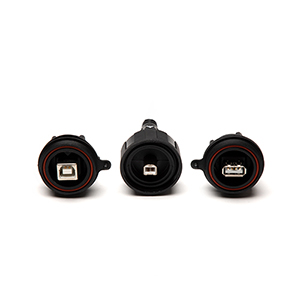

Standard Series Data Buccaneer
The Standard Data Series consists of Ethernet, HDMI, and USB solutions which deliver high speed, ruggedised data connectivity engineered to meet stringent mechanical, environmental and EMC demands across industrial, marine and other harsh duty applications.

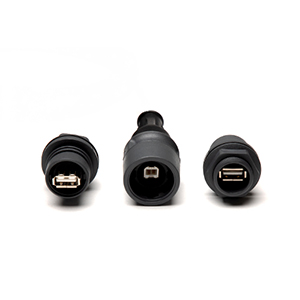

6000 Series Data Buccaneer
The 6000 Series delivers secure, sealed connectivity across USB, HDMI, and Ethernet, unified by a unique 30-degree twist-lock mechanism built for the harshest environments.
20/30 Series Data Buccaneer
IP67 20 Series USB & 30 Series HDMI Waterproof ranges offer an alternative to IP68 rated connectors offering a range of lengths and variety of different connection solutions.

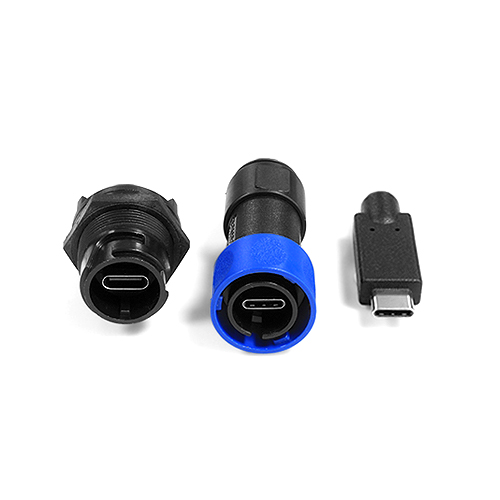

4000 Series Data Buccaneer
Rated to IP66, IP67, IP68 & IP69k Standards when mated, the 4000 Data Series Buccaneer is available in a Micro & C-Type USB and Single Pair Ethernet (SPE).

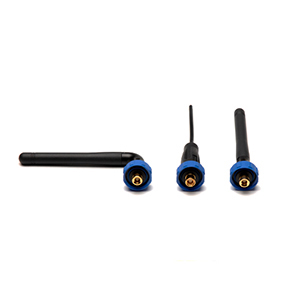

400 Series Data Buccaneer
The 400 Data Connectors is one of our most compact connectors within the Buccaneer range, for designs and applications requiring a small footprint and sealed data transmissions.

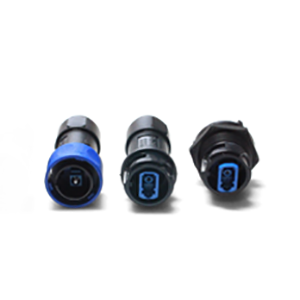

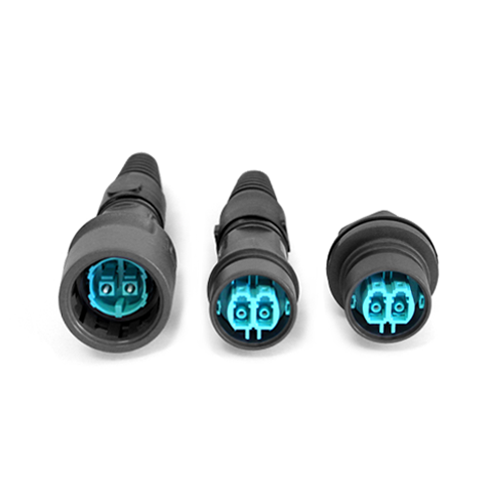

AO Series Data Connectors
The AO series combines electrical inputs with optical fiber transmission, using integrated circuits to boost signals and enable longer-distance, high-speed data links that outperform traditional copper cables
