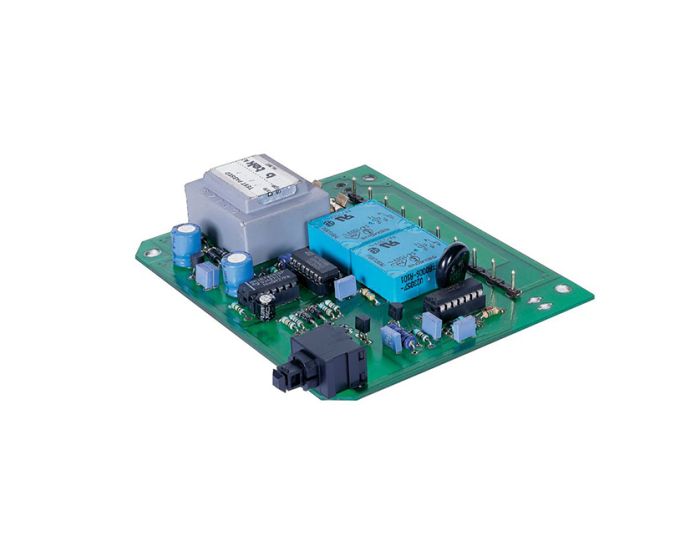

18.9mm x 12.9mm Panel Cutout Sub Panel Mount Minature Push Button Switches

    • Sub Panel Mount Minature Push Button Switches
    • ENEC, UL, CSA approved. Approvals and ratings can vary with function - see technical data for details. High Power versions available
    • Choice of:
    • Termination: 6.3 x 0.8 QC, 4.8 x 0.8 QC, Right Angle 4.8 x 0.8 QC, 2.8 x 0.8 Tab, Solder Tag, PCB Mount, PCB Mount Dual Pin, Right Angle PCB Mount Dual Pin (extra dummy PCB Mount terminals can be added for additional mechanical support to switch body - contact Sales for details)
    • Single Contact, Double Contact
    • Body style: Standard or with side support peg (for Right Angle PCB Mount Dual Pin Termination only)
    • Actuator: Standard (for snap on custom Actuators), Flat Top, Curved Top
    • Also available: M1226 Impact Resist Washer (resists damage from excessive operator force)
Product Downloads Product Certificates

Part number builder

Make one selection from each category to define part number



  • Termination



    Select

    1

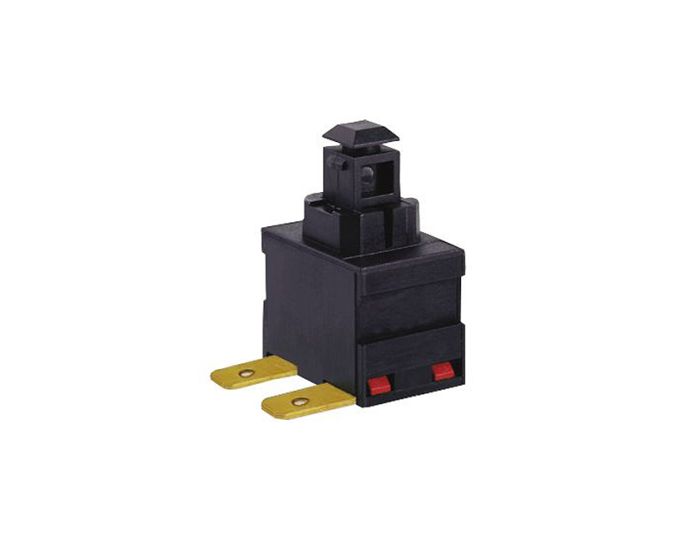

    A - 4.8 x 0.8 QC Right Angle

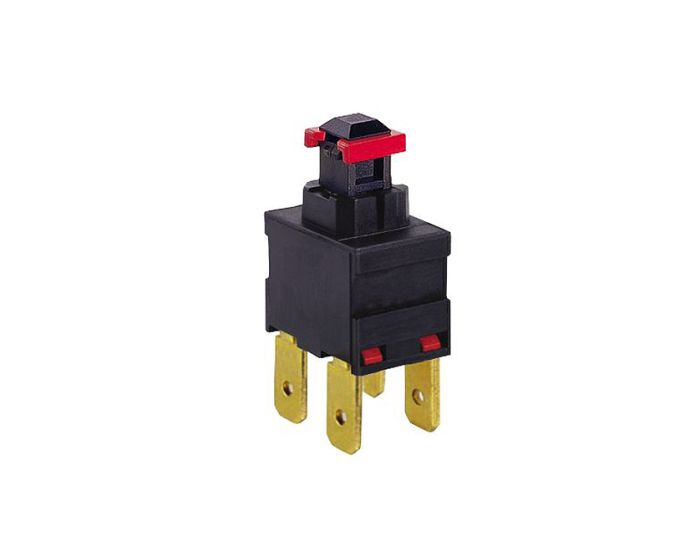

    C - 6.3 x 0.8 QC

    H - 4.8 x 0.8 QC

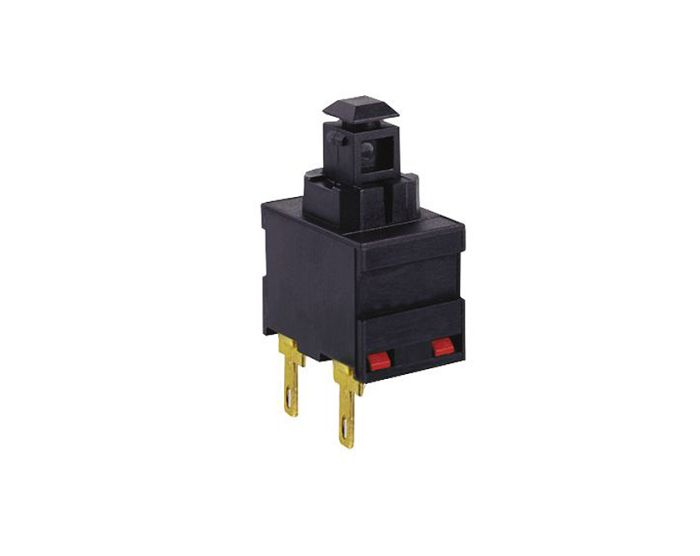

    K - 2.8 x 0.8 Tab

    M - PCB Mount Dual Pin Right Angle

    Body With Side Support Peg (C) Body specially designed for use with this Termination

    T - Solder Lug

    V - PCB Mount Dual Pin

    Extra dummy PCB Mount terminals can be added for additional mechanical support to switch body - contact Sales for details

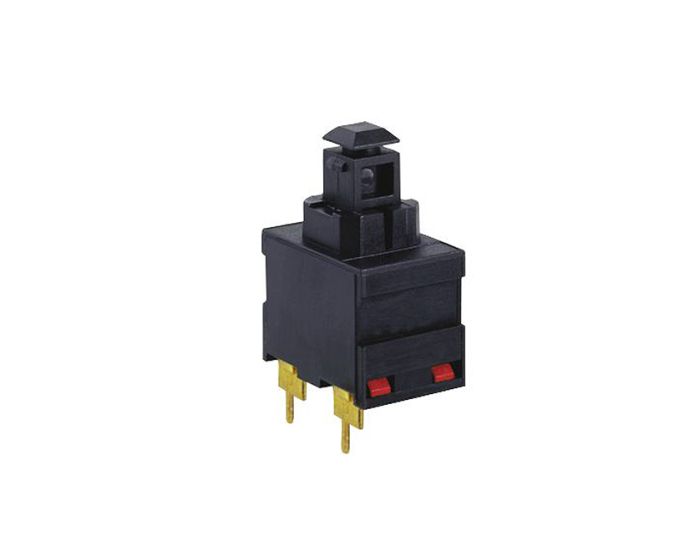

    X - PCB Mount

    Extra dummy PCB Mount terminals can be added for additional mechanical support to switch body - contact Sales for details

  • Switching



    Select

    2

    8200 - Single Contact ON OFF

    8201 - Single Contact ON OFF (Momentary ON)

    8250 - Double Contact ON OFF

    8251 - Double Contact ON OFF (Momentary ON)

  • Actuator



    Select

    3

    A - Standard Actuator

    For snap-on custom adaptors

    B - Flat Top Actuator

    C - Curved Top Actuator

  • Body



    Select

    4

    A - Standard Body

    C - Body With Side Support Peg

    Can only select when PCB Mount Dual Pin Right Angle (M) Termination is selected

  • Power



    Select

    5

    Standard

    Standard power rating

    H - High Power

    12(12)A 250VAC switch rating; see Technical Data for more details
