12.0mm Panel Cutout Versatile Range Of Single Contact Push To Make Switches
MMP0120 Series
- Versatile Range Of Single Contact Push To Make Switches
- 12mm diameter, raised domed profile
- Front Panel Sealed to IP65, some variants also available to IP67 (part codes containing 67)
- Illuminated versions (part codes starting MMPI0120) use bright daytime visible LEDs
- Choice of Termination, depending on part code suffix: S - Screw Terminals, P - 2mm x 0.5mm Pin Terminals
- Choice of body material and button material, depending on part code:
- Stainless Steel body and button: /SSS
- Nickel Plated Brass body and button: /NNB

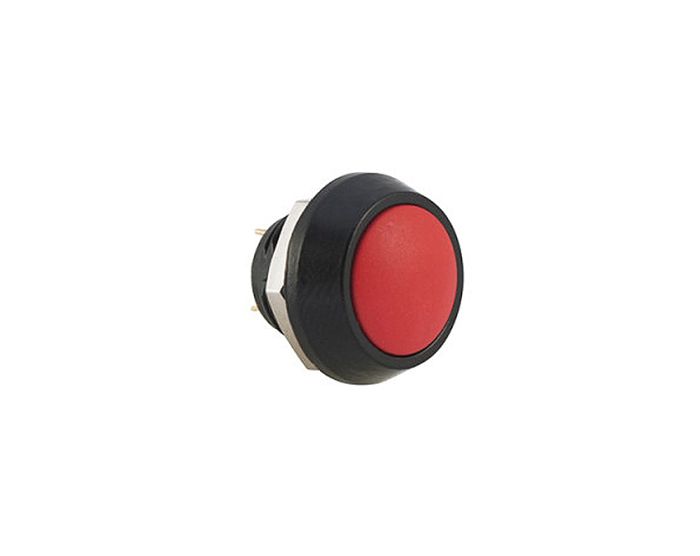

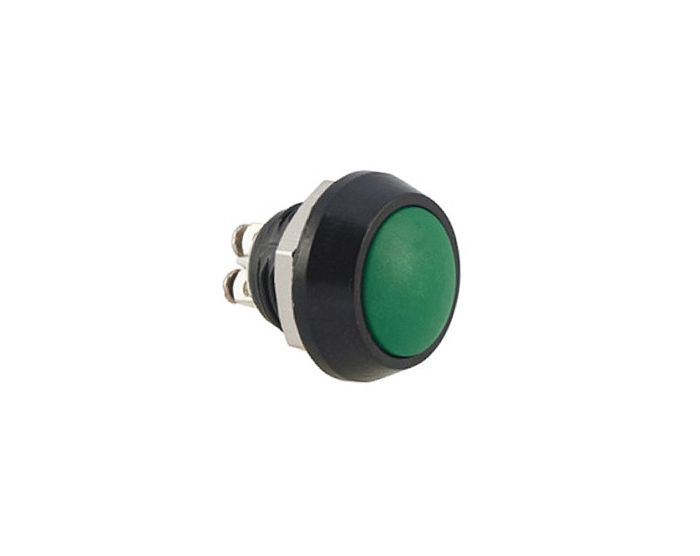

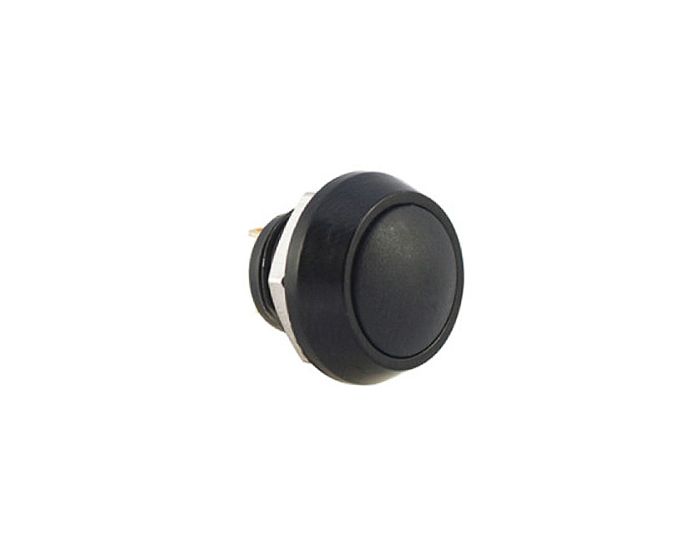

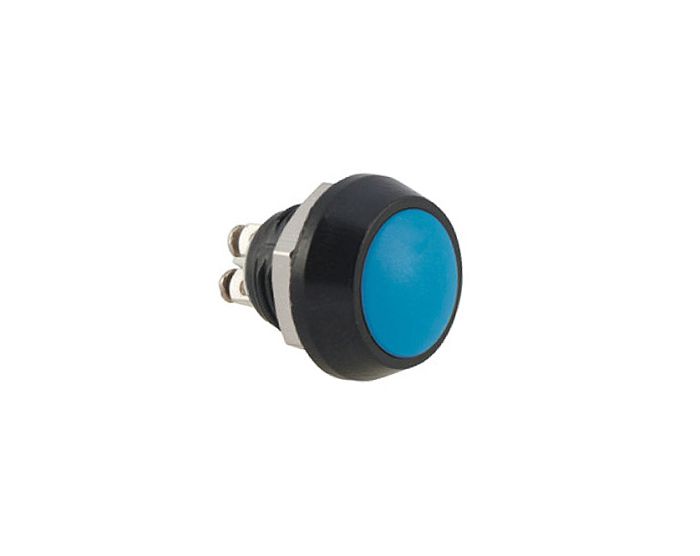

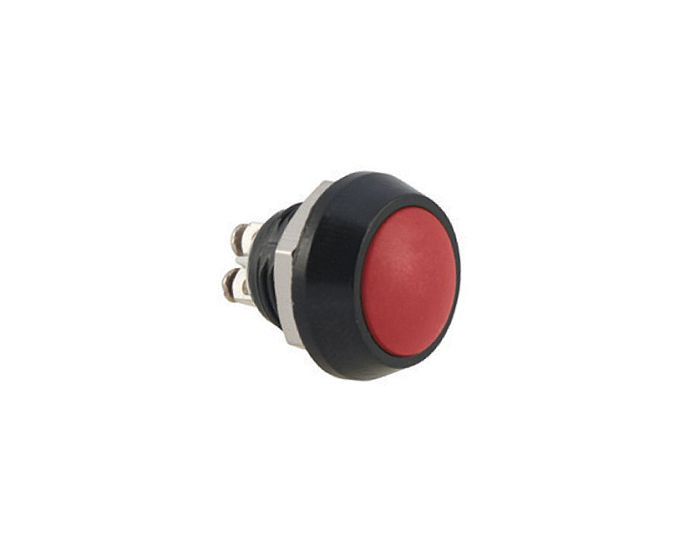

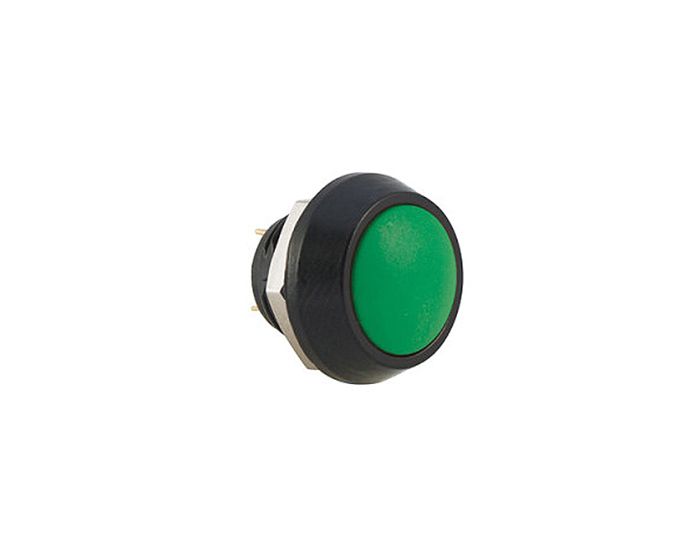

- Black Anodized Aluminium body: /A with PBT button in a choice of colour: RD - Red, GN - Green, BL - Blue, BK - Black
- All variants available in Illuminated versions:
- Choice of LED colour, depending on part code: RD - Red, GN - Green, BL - Blue, OR - Orange, AM - Amber (Yellow)
- Choice of LED operating voltage, depending on part code:
- Resistor installed for operation at a single fixed voltage: 012 - 12V DC, 024 - 24V DC
- Also available with no resistor installed (no voltage code) - see data for ratings to enable calculation of suitable series resistor value for application
Configure this product using product options below and find a distributor
