Versatile range of low voltage lampholders

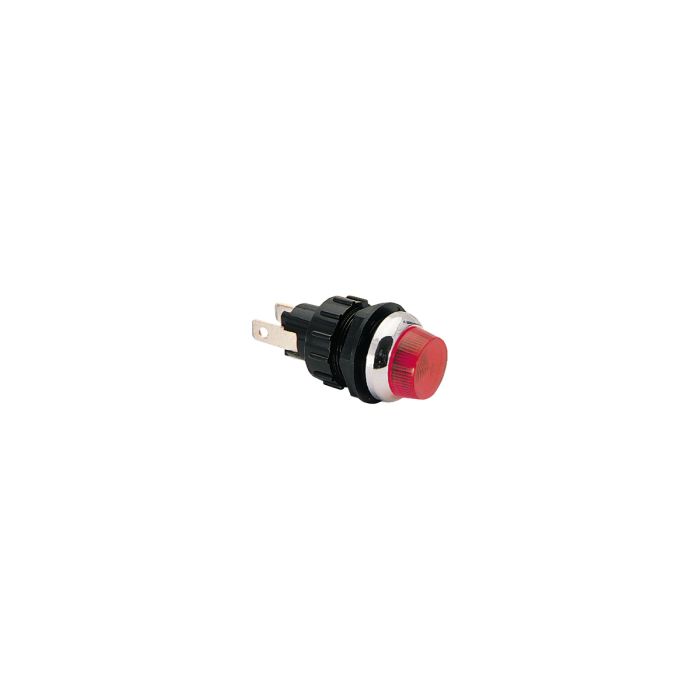

    • Versatile range of low voltage lampholders
    • Operating voltage: 50V maximum. Can be supplied complete with 6V, 12V or 24V MES (E10) lamp (1090 Series) or MBC (BA9/T-3 1/4 Bayonet) lamp (1091 Series)
    • Choice of:
    • Termination:
    • 6.3 x 0.8 QC, Screw & Clamp. 4.8mm Solder Tab also available for 1090 Series
    • Lamp type: MES (E10) lamp (1090 Series), MBC (BA9/T-3 1/4 Bayonet) lamp (1091 Series)
    • Lens profile: Flat, Domed or no lens fitted
    • Lens colour: Red, Amber, Green, Clear, Blue
    • Body diameter, Body material, Body length, Bezel/Trim:
    • 1090 Series: 19mm diameter Brass Body 24.6mm, 30.2mm, 35mm long; 25.4mm diameter Brass Body 26mm long; 19mm diameter Nylon Body 24.6mm, 30.2mm long both lengths with option of Chrome Plated Brass Bezel or Black Bezel
    • 1091 Series: 19mm diameter Brass Body 36mm long; 25.4mm diameter Brass Body 38.1mm long; 19mm diameter Nylon Body 36.6mm long with option of Chrome or Black Trim
    • Insulating terminal cover (F0445MO) available separately for all versions
    • IP67 Panel Sealed version available for both Series (C1090FPS, C1091FQS). Also available in mains voltage version (1092 Series)
Product Downloads Product Certificates

Part number builder

Make one selection from each category to define part number



  • Termination



    Select

    1

    C - 6.3 x 0.8 QC

    T - 4.8mm Solder Tab

    Not available when MBC BA9 (1091) Lampholder selected

    S - Screw Terminal

  • Lampholder



    Select

    2

    1090 - MES E10 Lampholder

    1091 - MBC BA9 (T-3 1/4 Bayonet) Lampholder

  • Lens



    Select

    3

    F - Flat Lens

    L - No Lens

    V - Domed Lens

  • Body



    Select

    4

    Must select A, D, E, G, H, L Body when MES E10 (1090) Lampholder selected

    A - 19mm Diameter Brass Body 35mm Long

    D - 19mm Diameter Brass Body 30.2mm Long

    E - 19mm Diameter Nylon Body 30.2mm Long

    G - 19mm Diameter Brass Body 24.6mm Long

    H - 19mm Diameter Nylon Body 24.6mm Long

    L - 25.4mm Diameter Brass Body 26mm Long

    Must select B, C, Q, M Body when MBC BA9 (1091) Lampholder selected

    B - 19mm Diameter Brass Body 36mm Long

    C - 19mm Diameter Nylon Body 36.6mm Long

    Q - 19mm Dia Nylon Body 36.6mm Long Chrome

    With Chrome trim

    M - 25.4mm Diameter Brass Body 38.1mm Long

  • Bezel Colour



    Select

    5

    B - Black

    C - Chrome

  • Lens Colour



    Select

    6

    A - Amber

    B - Blue

    C - Clear

    G - Green

    R - Red

  • Illumination



    Select

    7

    6 - 6V Filament

    12 - 12V Filament

    24 - 24V Filament
