BZV18/A0610/44

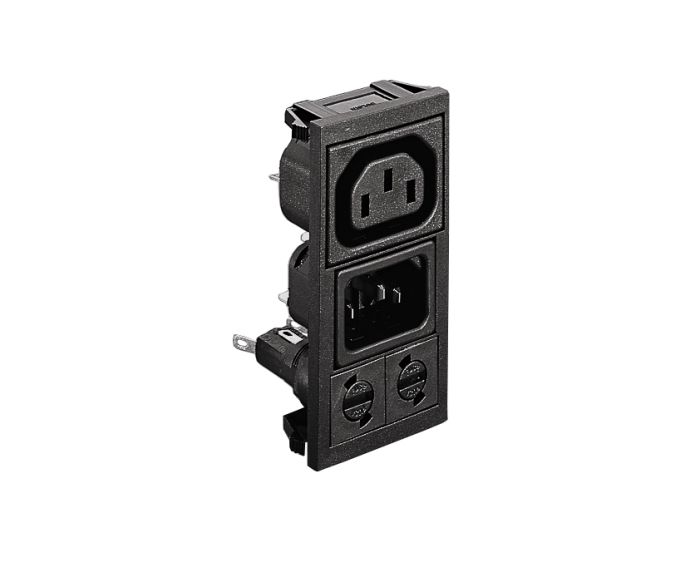

  • Vertical Power Entry Module 78.7mm
  • C14 Cold Condition Inlet (PX0575) combined with choice of Sheet F Shuttered (PX0783) or Non-Shuttered (PX0695) Outlet:
  • Part codes prefixed BZV17, BZV18: Shuttered Outlet
  • Part codes prefixed BZV09, BZV10: Non-Shuttered Outlet
  • Choice of Termination depending on part code:
  • Part codes prefixed BZV09, BZV17: 6.3mm Tab
  • Part codes prefixed BZV10, BZV18: 2.8mm Tab
  • Choice of mains filter depending on part code:
  • Part codes containing /Z0000 are unfiltered
  • Choice of mains filter options (part codes containing codes starting /A)
  • Choice of other options as specified by individual part code, including fuseholders, voltage selectors, indicators
3D CAD Models
