12.0mm Panel Cutout Stainless Steel Vandal Resistant Single Contact Momentary Action Push To Make Switches
MAV0120 Series
- Stainless Steel Vandal Resistant Single Contact Momentary Action Push To Make Switches
- 12mm diameter
- Front Panel Sealed to IP67
- Illuminated versions use bright daytime visible LEDs
- Pin Terminal (2mm x 0.5mm) Termination
- Choice of button profile, depending on part code: /1 - Flush button, /3 - Prominent button
- For Illuminated switches:

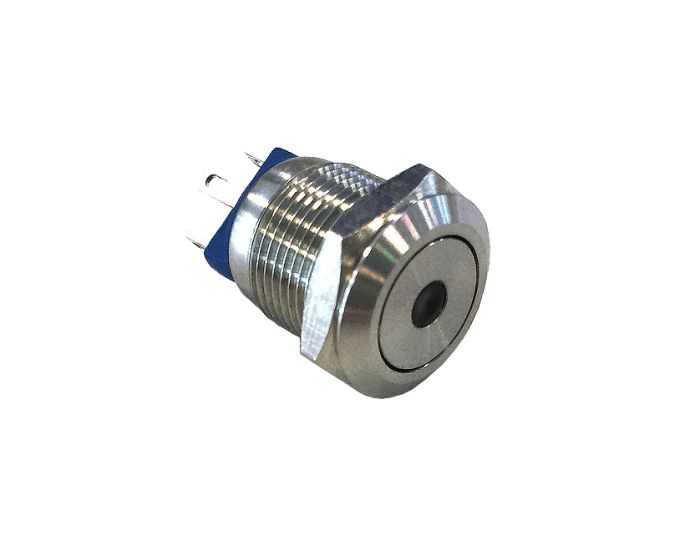

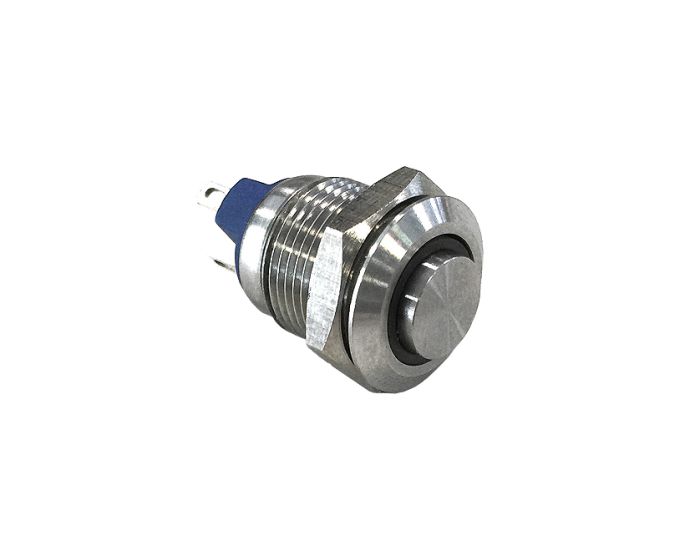

- Choice of Illumination style, depending on part code: 1 - Dot, 2 - Ring
- Choice of LED colour, depending on part code: RD - Red, GN - Green, BL - Blue, OR - Orange, AM - Amber (Yellow)
- Choice of LED operating voltage, depending on part code suffix:
- Resistor installed for operation at a single fixed voltage: 012 - 12V DC, 024 - 24V DC
- Also available with no resistor installed (no suffix) - see data for ratings to enable calculation of suitable series resistor value for application
Configure this product using product options below and find a distributor
