Rocker Switches

    • Rocker Switches
    • ENEC, UL, CSA approved (approvals and ratings can vary with function - see technical data for details)
    • Single Contact (1250SP Series) and Double Contact (1250 Series) in same body size
    • High inrush tolerance
    • Choice of:
    • Snap fit to panel, sub panel mounting
    • Termination: 6.3 x 0.8 QC, PCB mount (for sub panel mount versions only), both with integral terminal barrier
    • Body colour: Black, White
    • Curved Rocker: Black, Grey, White. Rocker unprinted, or printed in Black or White with a choice of Legend
    • Also available: F1344 connector housing (to aid wire harness assembly)
    • For details of the full range of Legends or information about custom body, rocker and Legend colours for large orders, please contact Sales
Product Downloads Product Certificates

Part number builder

Make one selection from each category to define part number



  • Termination



    Select

    1

    C - 6.3 x 0.8 QC

    X - PCB Mount

    Must select Sub-Panel Mount (N) Body/Bezel

  • Switching



    Select

    2

    1250SP - Single Contact ON OFF

    1250 - Double Contact ON OFF

  • Actuator



    Select

    3

    A - Curved Rocker

    Must select

  • Body/Bezel



    Select

    4

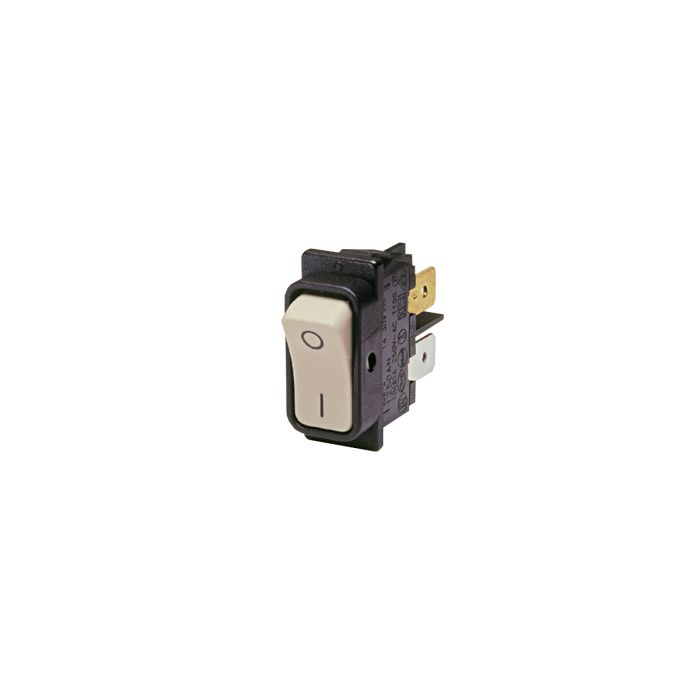

    N - Sub-Panel Mount Body/Bezel

    Must select if PCB Mount (X) Termination selected

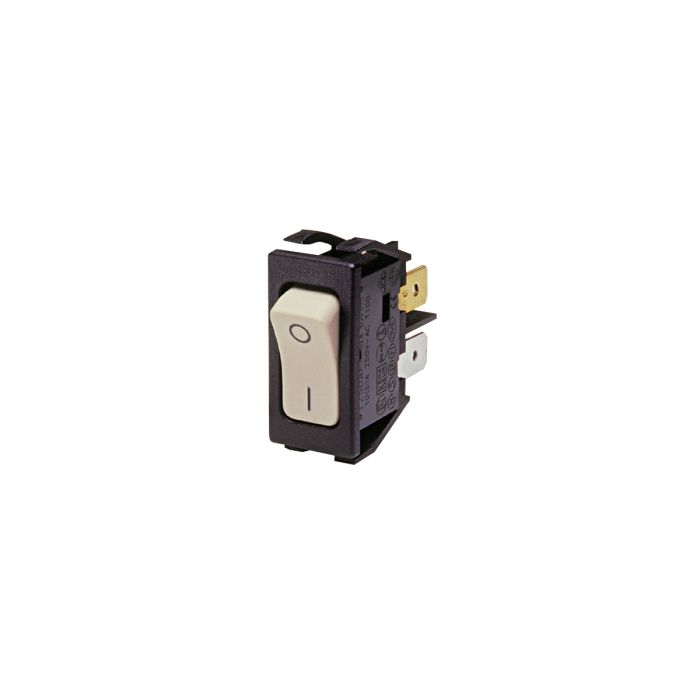

    P - Snap Fit To Panel Mount Body/Bezel

  • Body Colour



    Select

    5

    B - Black

    W - White

  • Actuator Colour



    Select

    6

    B - Black

    G - Grey

    W - White

  • Legend



    Select

    7

    If Legend is selected Legend Colour must also be selected

    Blank/Not Applicable

    No Legend required

    132 - CL132 - O I Horizontal

    133 - CL133 - O I Vertical

  • Legend Colour



    Select

    8

    Select (Not Applicable) unless Legend selected when Legend Colour must be selected

    (Not Applicable)

    No Legend Colour required - no Legend selected

    B - Black

    W - White
