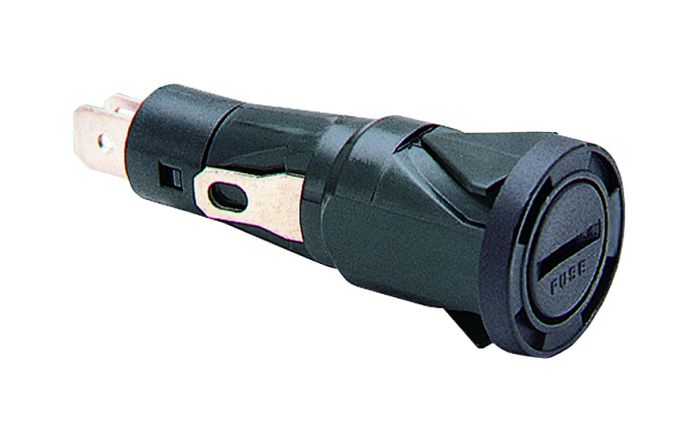

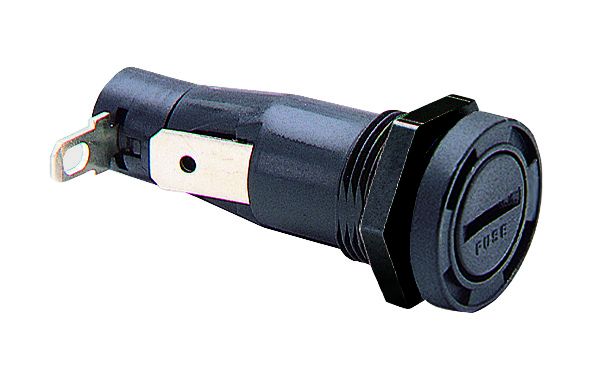

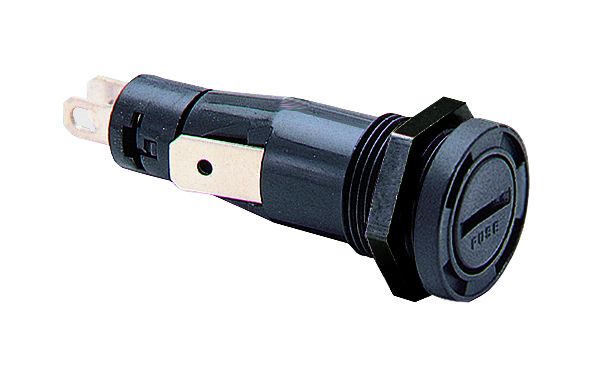

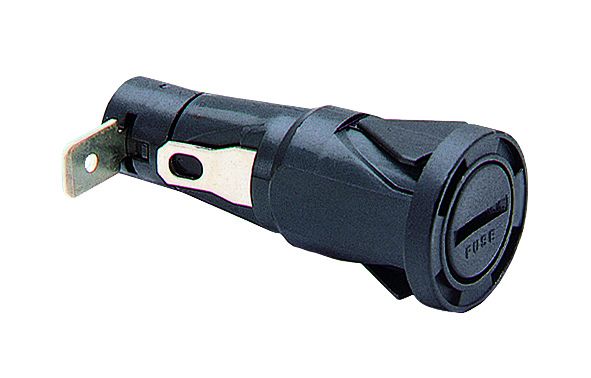

PC2 Low Profile Bezel Touchproof 6x32mm 16A Fuseholder
0345 / 0347 Series
- Shock Protection Category PC2 Fuseholders
- 6.3mm x 32mm fuse carrier, Screw Cap, Screwdriver Release
- Choice of mounting, depending on part code:
- Part codes containing 0345 - snap fit to panel (thickness 0.8mm - 2mm)
- Part codes containing 0347 - screw to panel (thickness 0.8mm - 7mm), nut supplied. Part codes suffixed /METAL supplied with metal mounting nut
- Choice of mounting hole shape, depending on part code:
- Part codes containing RA - 2.5mm key
- Part codes containing RD - 'D' shaped hole
- Choice of Termination, depending on part code prefix:
- C - 6.3mm Tab. M873 insulation boot available separately
- D - Right Angle 6.3mm Tab
- T - 4.8mm Solder Tag. M873 insulation boot available separately
- U - Right Angle 4.8mm Solder Tag
Configure this product using product options below and find a distributor
