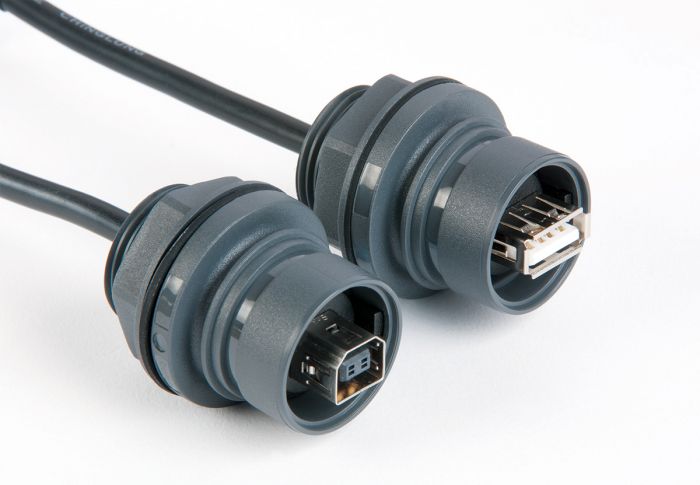

Front Panel Mount / Leaded USB 2.0 Type A/B

PXP6043 Series

    • Plastic Body Front Panel Mount Leaded Connector
    • Water and dustproof to IP66, IP68, IP69K when mated with compatible connector
    • 30 degree push twist locking, tamperproof lock prevents accidental un-mating
    • Sealed Standard USB socket to 125mm long cable terminated in 5 way crimp connector for use with PCB header (available separately, part code 14191, 14192)
    • PXP6043/A has Sealed Standard USB Type A socket on front of panel
    • PXP6043/B has Sealed Standard USB Type B socket on front of panel
    • PXP6083 Sealing Cap available separately to maintain IP rating of unmated connectors
    • Mate with PXP6040, PXP6041 Plastic Body USB Cables

Configure this product using product options below and find a distributor

3D CAD Models
