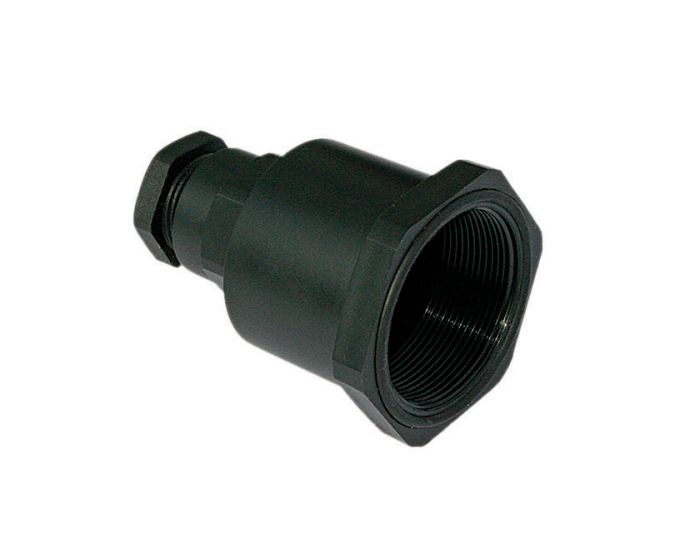

PX0799/BK
Standard Series Buccaneer
- Rear Of Panel Back Shell For Standard Series Power Connectors
- For use with Standard Series Front Panel Mounting connectors
- Replaces mounting nut, providing an environmental seal to rear of panel
- Choice of cable acceptance depending on part code:
- Part codes containing /04: 3.5mm-5mm diameter (grey cable gland SA3426)
- Part codes containing /05: 5mm-7mm diameter (white cable gland 12023/1)
- Part codes containing /07: 7mm-9mm diameter (yellow cable gland 12023/2)
- Part codes without cable acceptance code: 6mm-8mm diameter (black cable gland 12023)
- Gland Pack for /04 /05 /07 sizes (SA3253) and individual Cable Glands also available separately if required (part codes in list above)
