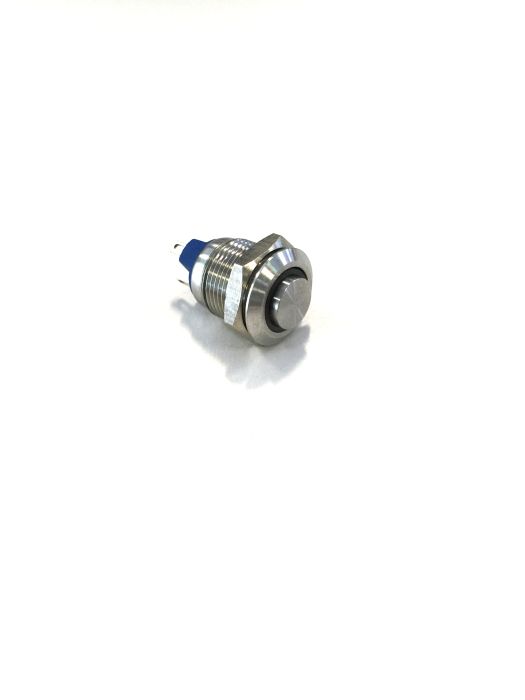

MAV0120/1D2BL024

Push Button

  • Stainless Steel Vandal Resistant Single Contact Momentary Action Push To Make Switches
  • 12mm diameter
  • Front Panel Sealed to IP67
  • Illuminated versions use bright daytime visible LEDs
  • Pin Terminal (2mm x 0.5mm) Termination
  • Choice of button profile, depending on part code: /1 - Flush button, /3 - Prominent button
  • For Illuminated switches:
  • Choice of Illumination style, depending on part code: 1 - Dot, 2 - Ring
  • Choice of LED colour, depending on part code: RD - Red, GN - Green, BL - Blue, OR - Orange, AM - Amber (Yellow)
  • Choice of LED operating voltage, depending on part code suffix:
  • Resistor installed for operation at a single fixed voltage: 012 - 12V DC, 024 - 24V DC
  • Also available with no resistor installed (no suffix) - see data for ratings to enable calculation of suitable series resistor value for application
3D CAD Models
