18mm Stainless Steel Illuminated Double Contact Changeover Switches

MP0045 Range

    • Stainless Steel Illuminated Double Contact Changeover Switches
    • 16mm diameter
    • Choice of switch action depending on part code:
    • Part codes containing /1D1 or /1D2 - Momentary action
    • Part codes containing /1E1 or /1E2 - Latching action
    • Choice of Illumination style depending on part code:

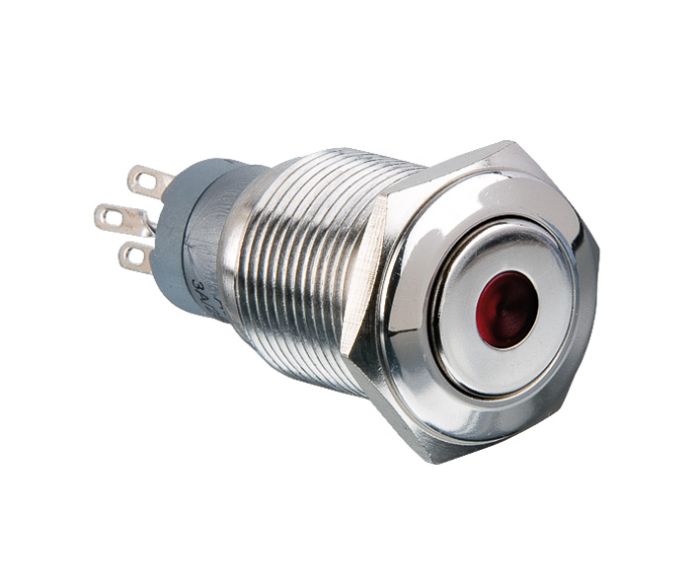

    • Part codes containing /1D1 or /1E1 - Centre dot

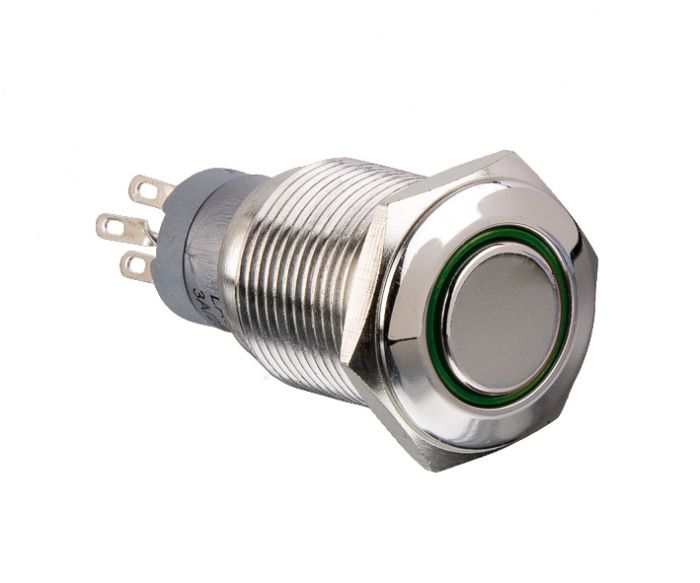

    • Part codes containing /1D2 or /1E2 - Ring
    • Choice of LED colour, depending on part code: /RD - Red, /GN - Green, /AM - Amber, /BL - Blue
    • Choice of LED operating voltage depending on part code suffix: /012 - 12V DC, /220 - 220V DC
    • Choice of IP40 or IP68 depending on part code suffix (S)
    • Stainless Steel - Momentary : Low Profile MP0045/1D & Prominent Button MP0045/3D
    • Stainless Steel - Latching : Low Profile MP0045/1E & Prominent Button MP0045/3E
    • Stainless Steel - Illuminated Momentary : Front Panel Mounting MP0045/1D1 & Front Panel Mounting MP0045/1D2
