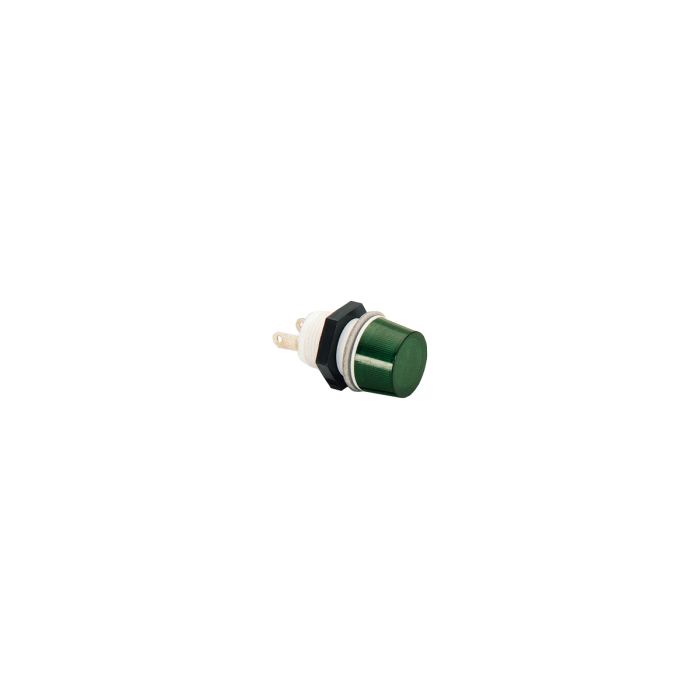

Low voltage lampholders

    • Low voltage lampholders
    • Operating voltage: 50V maximum. Can be supplied complete with 6V, 12V or 24V Midget Flange (0062 Series) lamp or LES (0063 Series) lamp
    • Termination: Small Solder Tag
    • Choice of:
    • Lamp type: Midget Flange (0062 Series), LES (0063 Series)
    • Lens colour: Red, Amber, Green, Clear. Blue also available to special order - contact Sales for details

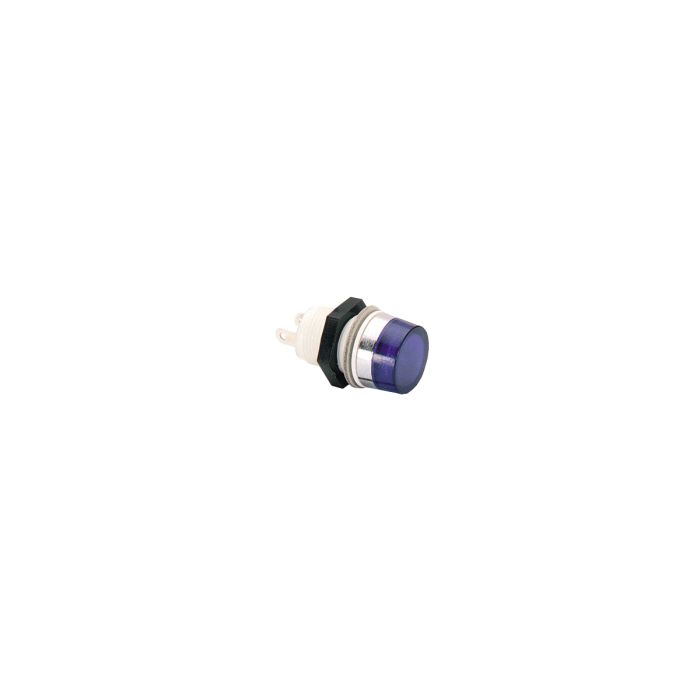

    • Bezel option: Part numbers containing 0062A, 0063A have a Chrome Plated Brass Bezel
    • IP67 Panel Sealed version available for both Series (supplied complete with gaskets/'O' rings)
Product Downloads Product Certificates

Part number builder

Make one selection from each category to define part number



  • Termination



    Select

    1

    T - Small Solder Tab

    Must select

  • Type



    Select

    2

    0062M - Midget Flange Bulb

    Must select No Bezel Option

    0062A - Midget Flange Bulb With Chrome Bezel

    Must select Chrome (C) Bezel Option

    0063M - LES Bulb

    Must select No Bezel Option

    0063A - LES Bulb With Chrome Bezel

    Must select Chrome (C) Bezel Option

  • Sealing



    Select

    3

    Not Panel Sealed

    S - IP67 Panel Sealed

  • Colour



    Select

    4

    A - Amber

    B - Blue

    C - Clear

    G - Green

    R - Red

  • Voltage



    Select

    5

    6 - 6V

    12 - 12V

    24 - 24V

  • Bezel Option



    Select

    6

    No Bezel

    Must select when 0062M or 0063M Type selected

    C - Chrome Bezel

    Must select when 0062A or 0063A Type selected
