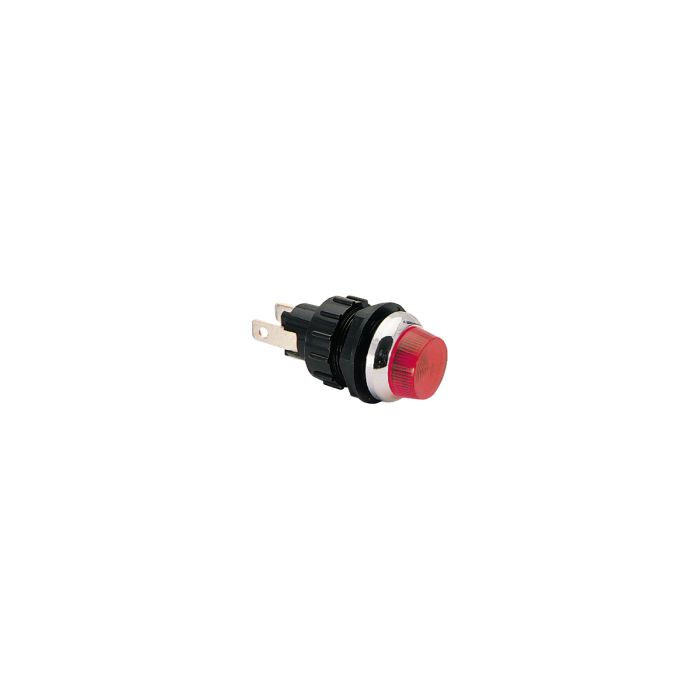

IP67 Panel Sealed low voltage MBC (BA9/T-3 1/4 Bayonet) lampholder with Chrome Bezel

Ø19.0mm Panel Cut Out, 22.0mm Bezel, IP67 Panel Sealed, Low Voltage Lampholder MBC (BA9s) - C1091 FQS Series

  • IP67 Panel Sealed low voltage MBC (BA9/T-3 1/4 Bayonet) lampholder with Chrome Bezel
  • Supplied complete with gaskets/'O' rings
  • Operating voltage: 50V maximum. Can be supplied complete with 6V, 12V or 24V lamp (front of panel lamp replacement)
  • 6.3 x 0.8 QC Termination
  • Flat Lens
  • Choice of Lens colour: Red, Amber, Green, Clear, Blue
  • Insulating terminal cover (F0445MO) available separately for all versions
  • Also available in low voltage MES (E10) version (C1090FPS Series). 1090 Series and 1091 Series also available without IP67 rating. Mains voltage version (1092 Series) also available
