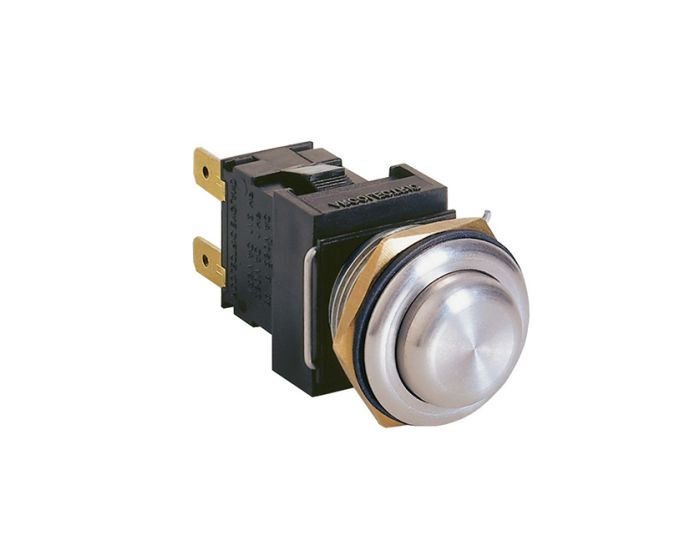

Vandal Resistant IP66 Panel Sealed Stainless Steel Push Button Switches

    • Vandal Resistant IP66 Panel Sealed Stainless Steel Push Button Switches
    • ENEC, UL, CSA approved. Approvals and ratings can vary with function - see technical data for details
    • Single Contact and Double Contact versions in same body size
    • Choice of:
    • Termination: 6.3 x 0.8 QC, 4.8 x 0.8 QC, 2.8 x 0.8 Tab, Solder Tag, PCB Mount, PCB Mount Dual Pin (extra dummy PCB Mount terminals can be added for additional mechanical support to switch body - contact Sales for details)
    • Switching: On Off (Alternate), On Off (Momentary On). Also available in plastic body version with wider choice of switching
    • Actuator button: Raised Top, Flat Top, Domed Top
Download prodotto Product Certificates

Part number builder

Make one selection from each category to define part number



  • Termination



    Select

    1

    C - 6.3 x 0.8 QC

    H - 4.8 x 0.8 QC

    K - 2.8 x 0.8 Tab

    T - Solder Lug

    V - PCB Mount Dual Pin

    X - PCB Mount

  • Switching



    Select

    2

    8300 - Single Contact ON OFF (Alternate)

    8301 - Single Contact ON OFF (Momentary ON)

    8350 - Double Contact ON OFF

    8351 - Double Contact ON OFF (Momentary ON)

  • Actuator



    Select

    3

    P - Stainless Steel Domed Top Button

    Must select IP66 Stainless Steel (M) Body/Bezel

    R - Stainless Steel Raised Top Button

    Must select IP66 Stainless Steel Body Soft Profile Bezel (P) Body/Bezel

    V - Stainless Steel Flat Top Button

    Must select IP66 Stainless Steel (M) Body/Bezel

  • Body/Bezel



    Select

    4

    M - IP66 Stainless Steel Body/Bezel

    Must select Stainless Steel Domed Top Button (P) or Stainless Steel Flat Top Button (V) Actuator

    P - IP66 Stainless Steel Body Soft Profile Bezel

    Must select Stainless Steel Raised Top Button (R) Actuator
