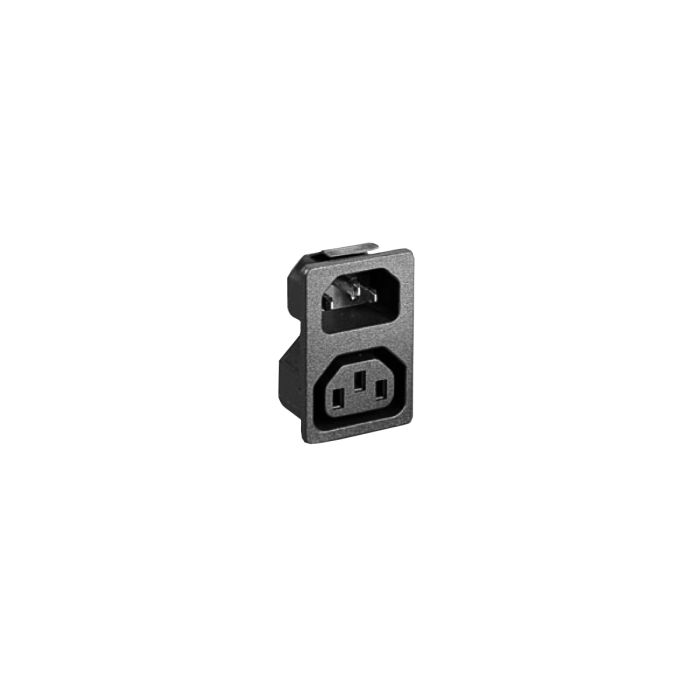

IEC Connector Snap Fit To Panel Inlet/Outlet PX0716 1.2mm Panel 4.8mm Tab Termination EN60 320-1 Standard Sheet C14 Class I and EN60 320-2-2 Standard Sheet F Class I

PX0716/48

IEC Connectors

  • Snap Fit Panel Mount IEC Inlet Outlet Combination
  • EN60 320-1 Standard Sheet C14 Class I and EN60 320-2-2 Standard Sheet F Class I
  • Cold Condition
  • 1.2mm panel thickness
  • 4.8mm Tab Termination
  • Blanking Cover for front of connector available separately (part code 14228)
  • Mate with PX0587, PX0587/SE, PX0588, PX0686, PX0686/SE
  • PX0718 Series also available (fused, single Inlet with choice of 1 to 6 Outlets, 1.5mm panel thickness)
