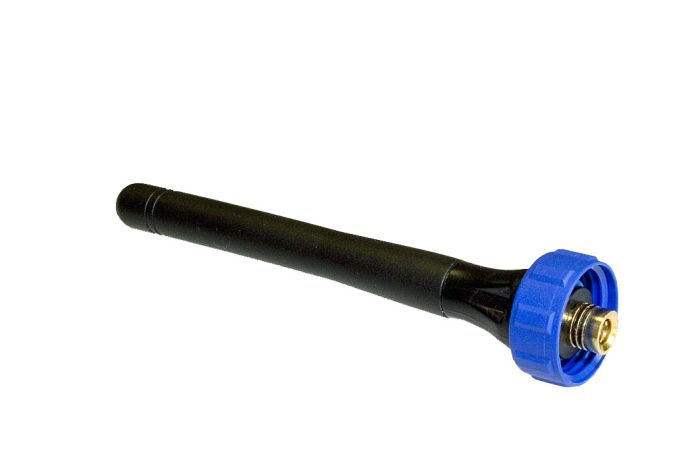

PX0409
400 Series SMB
- SMB Antennas
- Water and dustproof to IP68 when mated with compatible connector
- Secure screw thread locking
- Built-in half wavelength omnidirectional sealed antenna
- Choice of two presentations depending on part code:
- 90 degree bend (part codes suffixed /90)
- Straight (no part code suffix)
- SMB 50 Ohm interface
- Choice of frequency bands depending on part code:
- PX0407, PX407/90 - 2.4Ghz-2.5GHz
- PX0408, PX408/90 - 440MHz-470MHz
- PX0409, PX409/90 - 850-900Mhz/1800Mhz/1900MHz
- Mate with PX0414 Panel Mount SMB Connector
