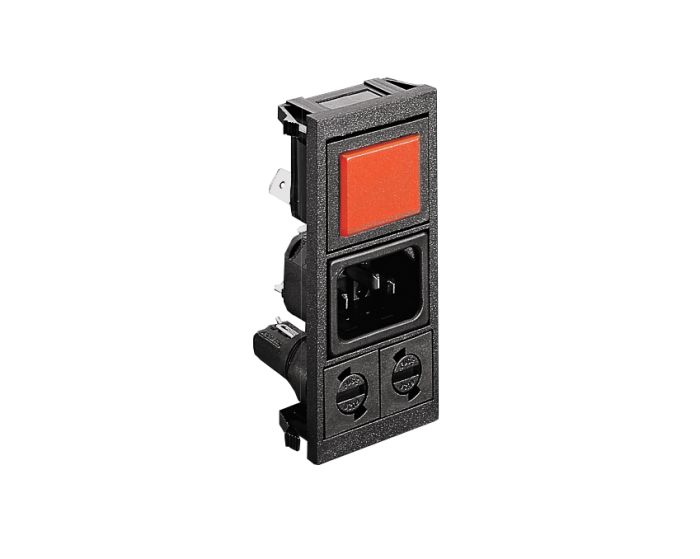

Vertical Power Entry Module 78.7mm C14 Cold Condition Inlet (PX0575) 6.3mm Tab Termination A0620 Filter (6A PS01/A L/C v2) 2 x FX0359 Fuseholders Double Contact High Inrush Switch

BZV03/A0620/20

Power Entry Modules

  • Vertical Power Entry Module 50.8mm/78.7mm
  • C14 Cold Condition Inlet (PX0575)
  • Choice of Termination depending on part code:
  • Part codes prefixed BZV03: 6.3mm Tab
  • Part codes prefixed BZV04: 2.8mm Tab
  • Choice of mains filter depending on part code:
  • Part codes containing /Z0000 are unfiltered
  • Choice of mains filter options (part codes containing codes starting /A)
  • Choice of many other options as specified by individual part code, including fuseholders, voltage selectors, indicators, illuminated switches, switch markings, etc
  • Also available in C16 Hot Condition Inlet (PX0595) versions in both Terminations (6.3mm Tab part code BZV05, 2.8mm Tab part code BZV06), Unfiltered only
