Gamma di interruttori bipolari e a bilanciere selettivo a 3 posizioni

  • Gamma di interruttori bipolari e a bilanciere selettivo a 3 posizioni
  • Versioni standard (Serie 1500), con elevata tolleranza di picco (Serie 1300) e con solo indicatore (Serie 0430)
  • Disponibili versioni a bilanciere anti-schizzi
  • Certificazioni ENEC, UL, CSA (alcune omologazioni non sono valide per alcune tipologie di terminali). Le omologazioni e le classificazioni possono variare con la funzione: vedere la scheda tecnica per i dettagli
  • Assortimento di:

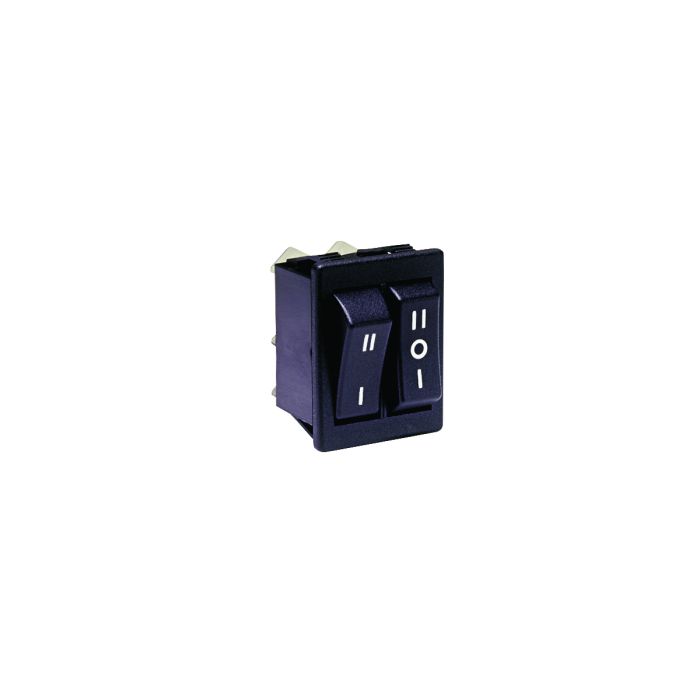

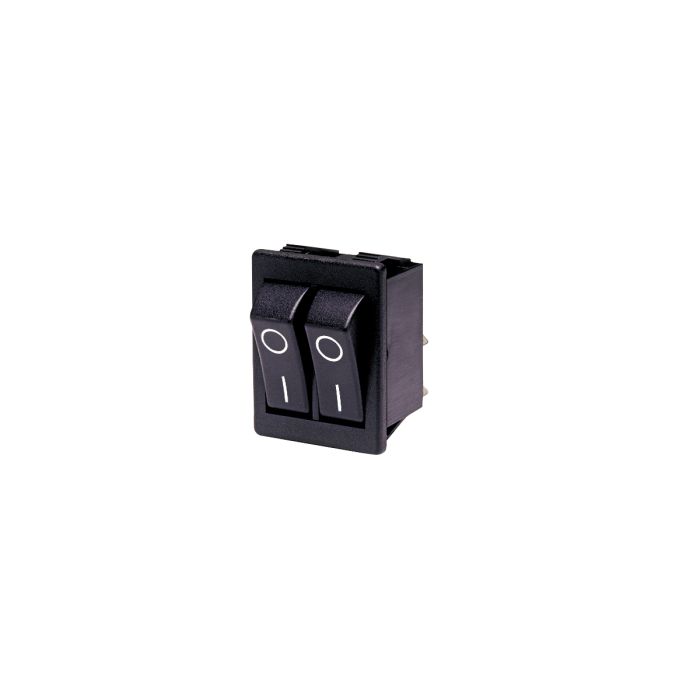

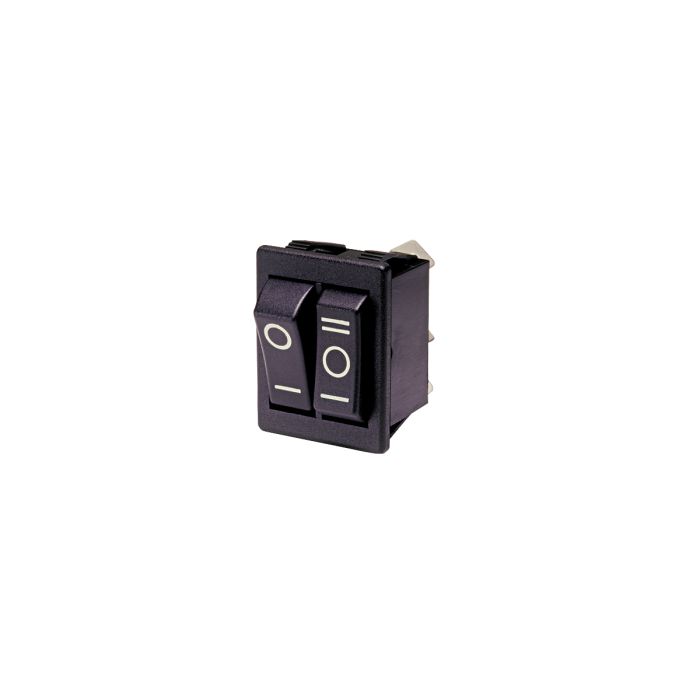

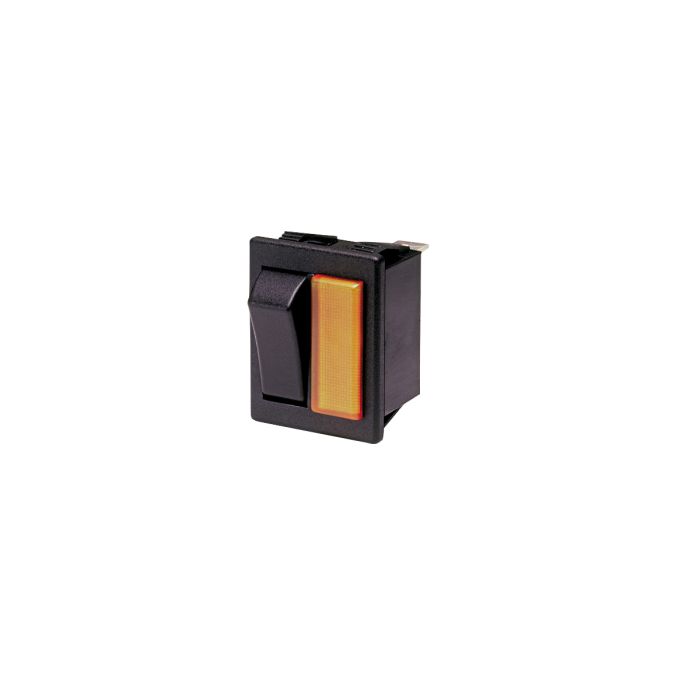

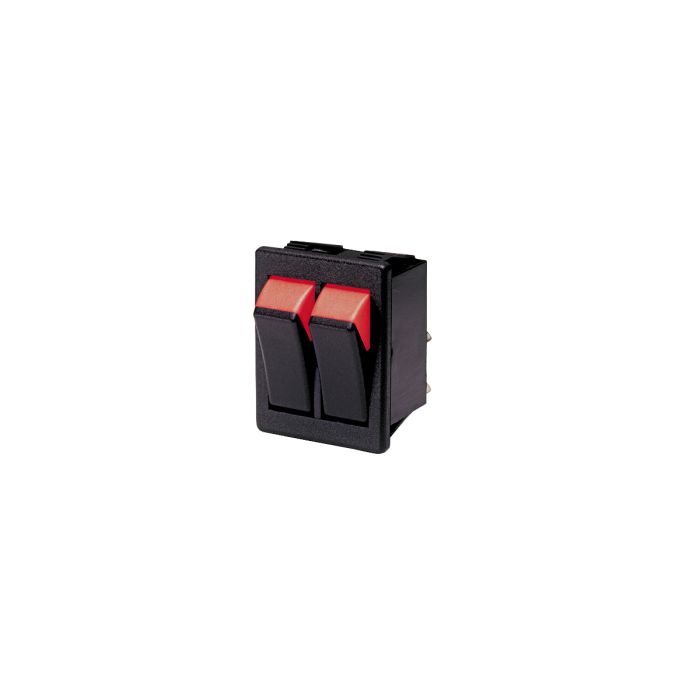

  • - Unità singole o doppie: Qualsiasi combinazione di due singoli interruttori Serie 1500, 1510, 1520 e indicatori Serie 0430 può essere montata in un'unica unità
  • - Terminale: QC 6,3 x 0,8, QC 4,8 x 0,8, linguetta 2,8 x 0,8 (non disponibile per interruttori Serie 1300), capocorda a saldare, capocorda a saldare ad angolo retto (non disponibile per interruttori Serie 1330 o qualsiasi unità a doppio interruttore), montaggio PCB (non disponibile per interruttori Serie 1300 e indicatore Serie 0430)
  • - Stili corpo/sagoma
  • - Colorazione del corpo: Nero, bianco
  • - Attuatore:
  • Bilanciere Softline, bilanciere antischizzi Softline (con Arcshield e collare/tenuta Hytrel), bilanciere curvo (non disponibile per unità a doppio interruttore), bilanciere antischizzi curvo (con Arcshield), bilanciere bicolore Softline con scelta inserto rosso, bianco (solo Serie 1500 e Serie 1300). Tutti disponibili in nero, rosso, bianco. Bilanciere non stampato, o stampato in nero o bianco con legenda a scelta
  • Bilanciere con intaglio (per l'uso con attuatori a scatto, non disponibile per interruttori momentanei)
  • - Finitura: Finitura lucida disponibile anche per alcune tipologie di corpo e per le versioni standard di bilanciere curvo. L'indicatore 0430 è disponibile con lente a profilo piatto lucido o con lente a profilo softline opaco
  • - Illuminazione: rosso, ambra, verde, trasparente a incandescenza da 12V o 24V, neon da 125V o 250V (disponibili altre tensioni di illuminazione) (solo indicatore Serie 0430).
  • Disponibile anche per versioni a interruttore singolo: Coperchio di protezione a scatto G74 per alcune tipologie di corpo/sagoma (non adatto per interruttori ad azione momentanea), rondella di tenuta a pannello W46 (non disponibile per tutte le tipologie di corpo/sagoma, vedere scheda tecnica per i dettagli), piastra di otturazione A0434
  • Per i dettagli sull'intera gamma di legende o per informazioni sulle colorazioni personalizzate di corpi, bilancieri e legende per grandi ordinativi, contattare l'ufficio Vendite
  • Disponibile anche nelle versioni illuminata (Serie 5500), bipolare (Serie 1550) e bipolare con elevata tolleranza di picco (Serie 1350)
Download prodotto Product Certificates

Part number builder

Make one selection from each category to define part number

  • Termination



    Select

    1

    C - 6.3 x 0.8 QC

    H - 4.8 x 0.8 QC

    K - 2.8 x 0.8 Tab

    Not available when High Inrush Switching (1300 Series) selected

    T - Solder Lug

    U - Right Angle Solder Lug

    Not available when High Inrush Switching (1300 Series) selected

    X - PCB Mount

    Not available when High Inrush Switching (1300 Series) or 0430 Series Indicator selected

  • Switching



    Select

    2

    1300 - Single Pole ON OFF High Inrush

    Must select 6.3 x 0.8 QC (C), 4.8 x 0.8 QC (H) or Solder Lug (T) Termination
    Positive break switching: The 1300 series mechanism ensures contact welds formed at switch-on are positively separated by the plunger tube acting directly on the step in the moving contact

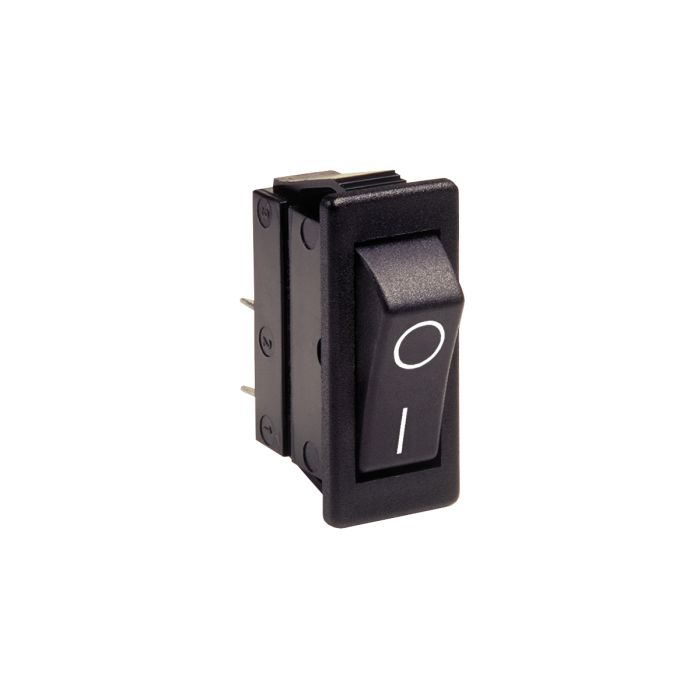

    1500 - Single Pole ON OFF

    1501 - Single Pole ON OFF (Momentary ON)

    1502 - Single Pole ON OFF (Momentary OFF)

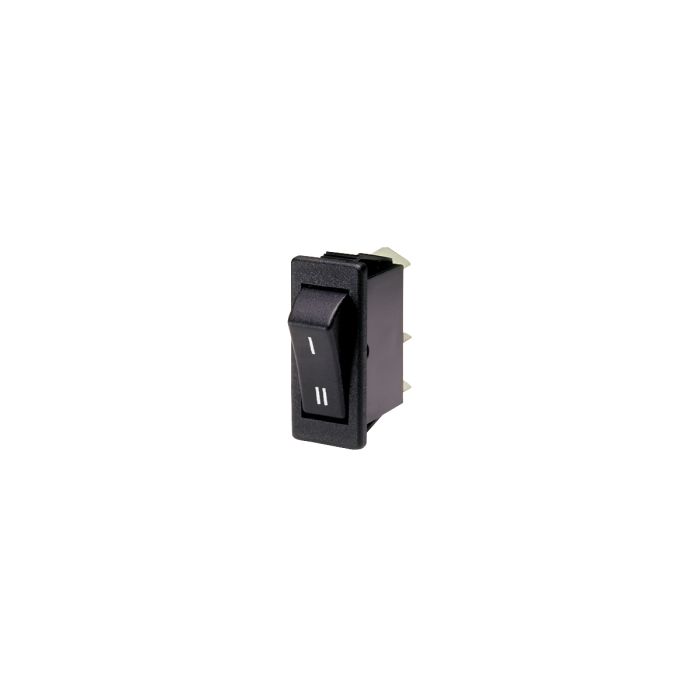

    1510 - Single Pole ON ON

    1511 - Single Pole ON ON (Momentary 1 Side)

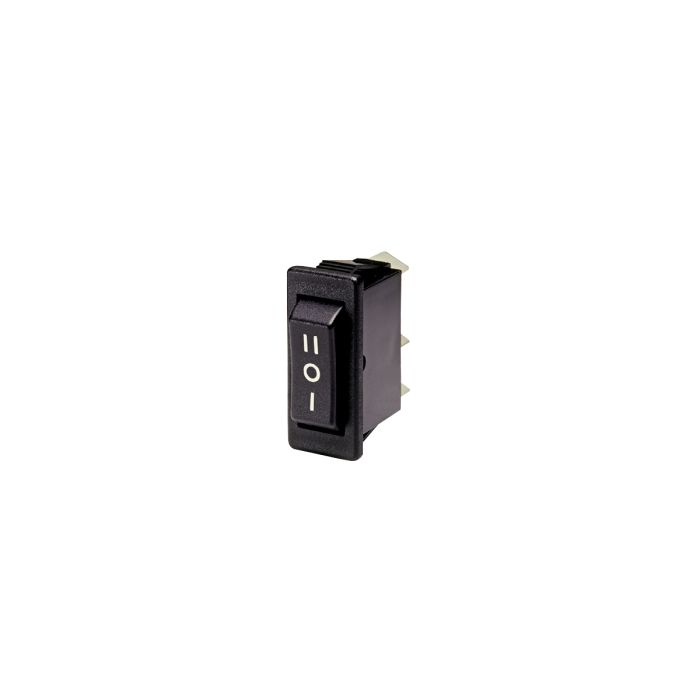

    1520 - Single Pole ON OFF ON

    1521 - SP ON OFF ON (Momentary 1 Side)

    1522 - SP ON OFF ON (Momentary 2 Sides)

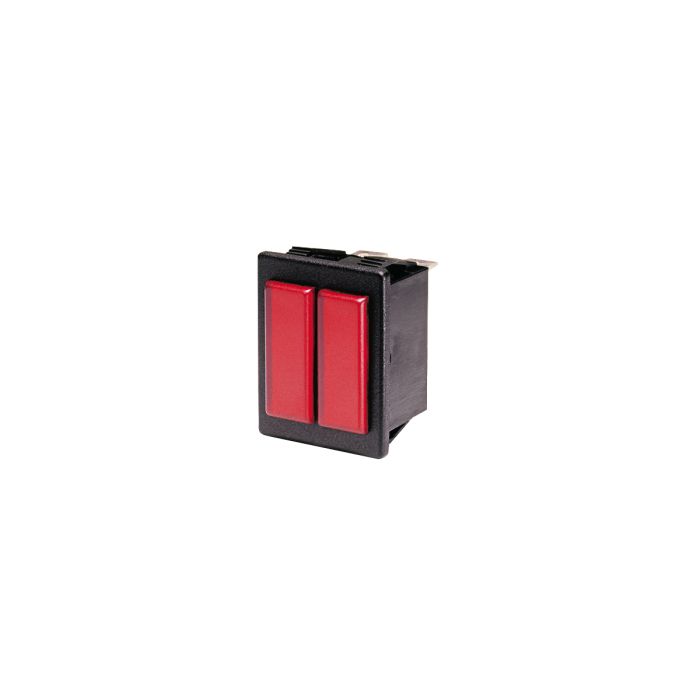

    0430 - Indicator Only (not switched)

    Not available when PCB Mount (X) Termination selected

  • Actuator



    Select

    3

    Actuator and Body/Bezel available in Gloss or Matt Finish. Must select options with the same Finish for both Actuator and Body/Bezel before selecting matching Finish option

    A - Matt Softline Rocker

    Available for all Switching selections except 0430 Series Indicator. Must select Actuator Colour

    A - Matt Softline Lens

    Only available when 0430 Series Indicator selected. Must select Actuator Colour (indicator colour). Must select Illumination

    B - Matt Splash Resistant Softline Rocker

    With Arcshield; Hytrel collar/seals for enhanced protection. Available for all Switching selections except 0430 Series Indicator. Must select Actuator Colour

    F - Gloss Flat Lens

    Only available when 0430 Series Indicator selected. Must select Actuator Colour (indicator colour). Must select Illumination

    H - Slotted

    For snap-in custom actuators. Not available when momentary Switching (1501, 1502, 1511, 1521, 1522 Series) or 0430 Series Indicator selected

    V - Matt/Gloss Curved Rocker

    Available for all Switching selections except 0430 Series Indicator. Must select Actuator Colour

    W - Matt Splash Resistant Curved Rocker

    With Arcshield. Available for all Switching selections except 0430 Series Indicator. Must select Actuator Colour

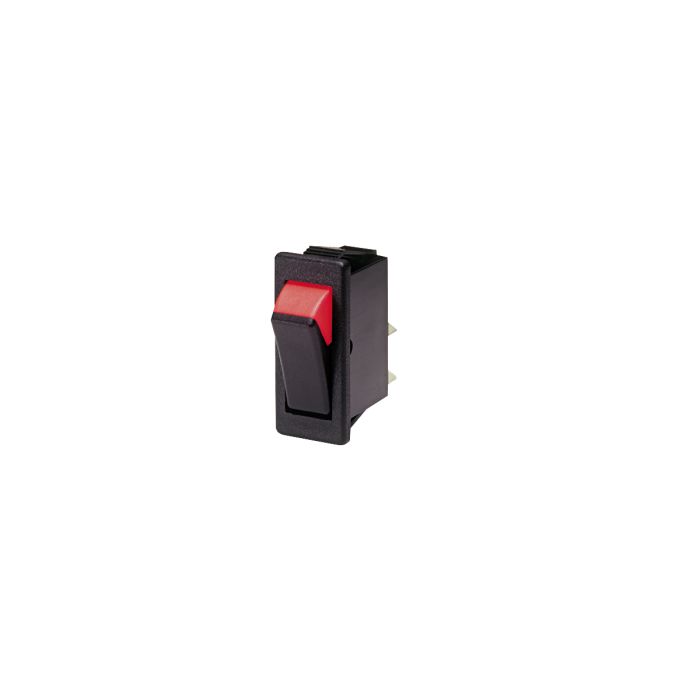

    X - Matt Two Colour Curved Rocker

    Not available when momentary Switching (1501, 1502, 1511, 1521, 1522 Series) or 0430 Series Indicator selected. Must select Actuator Colour and Insert Colour

  • Body/Bezel



    Select

    4

    Actuator and Body/Bezel available in Gloss or Matt Finish. Must select options with the same Finish for both Actuator and Body/Bezel before selecting matching Finish option

    A - Matt/Gloss Body/Bezel A

    B - Matt Body/Bezel B

    L - Matt Body/Bezel L

    Q - Matt/Gloss Body/Bezel Q

    R - Matt Body/Bezel R

    T - Matt Body/Bezel T

  • Finish



    Select

    5

    Actuator and Body/Bezel available in Gloss or Matt Finish. Must select options with the same Finish for both Actuator and Body/Bezel before selecting matching Finish option

    G - Gloss Finish

    Must select if both Actuator and Body/Bezel selections are Gloss finish

    M - Matt Finish

    Must select if both Actuator and Body/Bezel selections are Matt finish

  • Body Colour



    Select

    6

    B - Black

    W - White

  • Actuator Colour



    Select

    7

    Options available for all Switching selections

    R - Red/Red Illuminated

    For all Switching and 0430 Series Indicator selections. Not available when Slotted (H) Actuator selected

    Options only available when 0430 Series Indicator not selected

    B - Black

    Must select when Slotted (H) Actuator selected

    W - White

    Not available when Slotted (H) Actuator selected

    Options only available when 0430 Series Indicator is selected

    A - Amber Illuminated

    C - Clear Illuminated

    G - Green Illuminated

  • Insert Colour



    Select

    8

    Select (Not Applicable) unless Matt Two Colour Curved Rocker (X) Actuator selected when Insert Colour must be selected

    (Not Applicable)

    Must select if Matt Two Colour Curved Rocker (X) Actuator not selected

    R - Red

    Required when Matt Two Colour Curved Rocker (X) Actuator selected

    W - White

    Required when Matt Two Colour Curved Rocker (X) Actuator selected

  • Illumination



    Select

    9

    Select (Not Applicable) unless 0430 Series Indicator selected when Illumination must be selected

    (Not Applicable)

    Must select unless 0430 Series Indicator selected

    2 - 125V Neon

    3 - 250V Neon

    7 - 12V Filament

    8 - 24V Filament

  • Legend



    Select

    10

    Select Blank/Not Applicable if Slotted (H) Actuator or 0430 Series Indicator selected. For all other Switching and Actuator selections Legend can optionally be selected

    Blank/Not Applicable

    No Legend required, or not available

    602A - EN602A - O I Vertical

    Must select Legend Colour

    730 - EN730 - II O I Vertical

    Must select Legend Colour

    822 - EN822 - Fan

    Must select Legend Colour

  • Legend Colour



    Select

    11

    Select (Not Applicable) unless Legend selected when Legend Colour must be selected

    (Not Applicable)

    No Legend Colour required - no Legend selected

    B - Black

    Required when a Legend is selected

    W - White

    Required when a Legend is selected

  • Cover



    Select

    12

    None/Not Applicable

    No cover required or no cover available for selected Body/Bezel and Actuator

    G74 - Single Pole Body Size Snap On Cover

    Available only when Matt/Gloss Body/Bezel A, Matt Body/Bezel L, Matt/Gloss Body/Bezel Q, Matt Body/Bezel T selected. May not be available when Slotted (H) Actuator selected, depending on custom Actuator size

  • BioCote



    Select

    13

    No BioCote

    Without BioCote Antimicrobial Additive

    B - With BioCote

    Moulded components have BioCote additive with antimicrobial properties using BioCote silver ion technology
