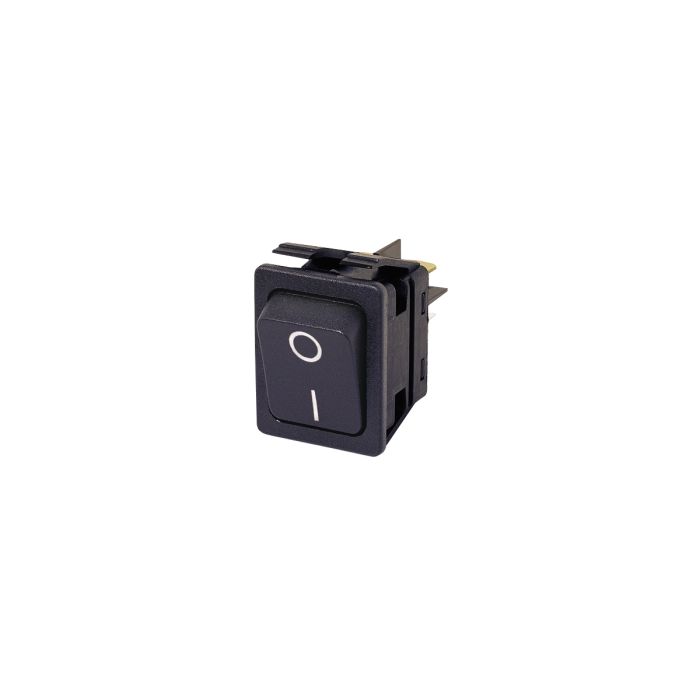

Interruttori a bilanciere anti-schizzi

  • Interruttori a bilanciere anti-schizzi
  • Certificazioni ENEC, UL, CSA (tranne interruttori 6054, 6055, 6061, 6062). Le omologazioni e le classificazioni possono variare con la funzione: vedere la scheda tecnica per i dettagli
  • Scossaline integrate nel corpo

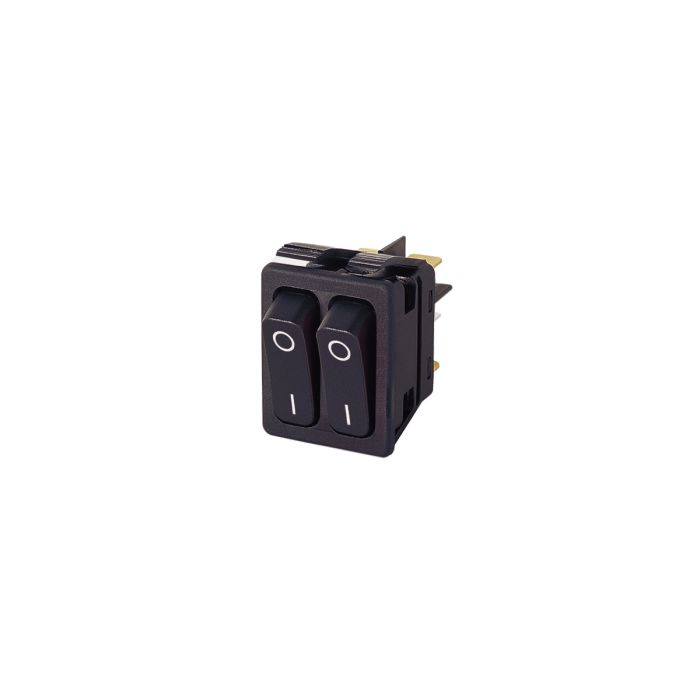

  • Versioni unipolare (Serie 6055, 6056, 6058, 6059, 6066), bipolare (Serie 6050, 6051, 6052, 6053, 6054, 6057, 6060, 6061, 6067, 6068, 6090, 6091, 6092), a 2 circuiti (Serie 6062) a doppio interruttore tutte con la stessa dimensione corpo
  • Elevata tolleranza di picco (solo tipologie on/off)
  • Assortimento di:
  • - Terminale: QC 6,3 x 0,8, QC 4,8 x 0,8, morsetto a vite (versione con morsetto a vite non disponibile per dispositivi con 3 terminali in entrambe le tipologie polari). Con barriera terminale integrale
  • - Colorazione del corpo: Nero, bianco, rosso
  • - Attuatore:
  • Serie 6050, 6051, 6052, 6060, 6061, 6062: Bilanciere Softline: nero, rosso, bianco. Bilanciere non stampato, o stampato in nero o bianco con legenda a scelta
  • Tutte le altre serie non riportate sopra: Bilanciere Softline illuminato in rosso, ambra, verde, trasparente a incandescenza da 12V o 24V, neon da 125V o 250V (disponibili altre tensioni di illuminazione). Bilanciere non stampato, o stampato in nero o bianco con legenda a scelta

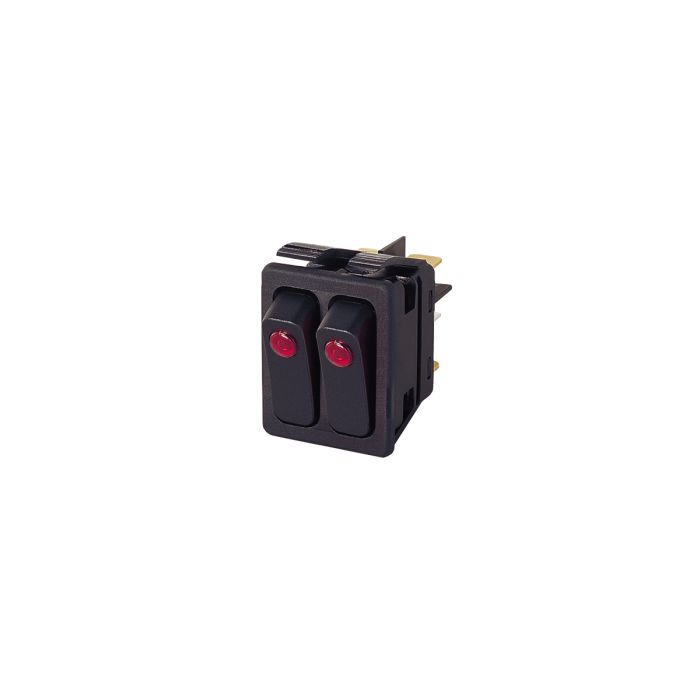

  • Tutte le altre serie non riportate sopra: Bilanciere Softline con punto illuminato in rosso, ambra, verde, trasparente con LED da 12V o 24V
  • Disponibile anche: Coperchio di protezione a scatto G72 (non adatto per interruttori ad azione momentanea), rondella di tenuta a pannello W42, collegamento terminale P1067 (per collegare i poli di un'unità bipolare o a doppio interruttore)
  • Per i dettagli sull'intera gamma di legende o per informazioni sulle colorazioni personalizzate di corpi, bilancieri e legende per grandi ordinativi, contattare l'ufficio Vendite
  • Disponibile anche nelle versioni unipolari (Serie 6000)
Download prodotto Product Certificates

Part number builder

Make one selection from each category to define part number



  • Termination



    Select

    1

    C - 6.3 x 0.8 QC

    H - 4.8 x 0.8 QC

    S - Screw & Clamp

    Not available for assemblies with 3 terminals in either Pole

  • Switching



    Select

    2

    6050 - Double Pole ON OFF

    6051 - Double Pole ON OFF (Momentary ON)

    6052 - Double Pole ON OFF (Momentary OFF)

    6053 - Double Pole ON OFF Illuminated

    6054 - Double Pole ON OFF (Momentary ON) Illuminated

    6055 - Single Pole ON OFF (Momentary ON) Illuminated

    6056 - SP ON OFF With Isolated Illumination

    6057 - DP ON OFF With Isolated Illumination

    6058 - Single Pole ON OFF Illuminated

    6059 - SP ON OFF (Momentary ON) Isolated Illum.

    With isolated Illumination

    6060 - Double Pole ON ON

    6061 - Double Pole ON ON (Momentary 1 Side)

    6062 - 2 Circuit ON ON

    6066 - Single Pole ON ON Isolated Illumination

    6067 - Double Pole ON ON Illuminated

    6068 - Dual 1 Pole ON ON 1 Pole ON OFF Illuminated

    6090 - Dual 1 Pole ON OFF 1 Pole ON OFF Illuminated

    6091 - Double Pole ON OFF (Momentary ON) Illuminated

    6092 - Dual 1 Pole ON OFF 1 Pole ON ON Illuminated

  • Actuator



    Select

    3

    A - Softline Rocker

    Only available when non-Illuminated Switching (6050, 6051, 6052, 6060, 6061, 6062 Series) selected. Must select Actuator Colour

    A - Illuminated Softline Rocker

    Only available when Illuminated Switching (all but 6050, 6051, 6052, 6060, 6061, 6062 Series) selected. Must select Actuator Colour. Must select Illumination

    P - Softline Rocker With Illuminated Dot

    Only available when Illuminated Switching (all but 6050, 6051, 6052, 6060, 6061, 6062 Series) selected. Must select Actuator Colour. Must select Illumination

  • Body/Bezel



    Select

    4

    L - Double Pole Size Body/Bezel

    Must select

  • Body Colour



    Select

    5

    B - Black

    R - Red

    W - White

  • Actuator Colour



    Select

    6

    Options available for all Switching selections

    R - Red/Red Illuminated

    Options available for non-Illuminated Switching (6050, 6051, 6052, 6060, 6061, 6062 Series) selections only

    B - Black

    W - White

    Options available for Illuminated Switching (all but 6050, 6051, 6052, 6060, 6061, 6062 Series) only

    A - Amber Illuminated

    C - Clear Illuminated

    G - Green Illuminated

  • Illumination



    Select

    7

    Select (Not Applicable) unless Illuminated Switching (all but 6050, 6051, 6052, 6060, 6061, 6062 Series) selected when Illumination must be selected

    (Not Applicable)

    Must select when Non-Illuminated Switching (6050, 6051, 6052, 6060, 6061, 6062 Series) selected

    2 - 125V Neon

    3 - 250V Neon

    5 - 12VDC LED

    Only available when Softline Rocker With Illuminated Dot (P) Actuator selected

    6 - 24VDC LED

    Only available when Softline Rocker With Illuminated Dot (P) Actuator selected

    7 - 12V Filament

    8 - 24V Filament

  • Legend



    Select

    8

    Select Blank/Not Applicable unless Softline Rocker/Illuminated Softline Rocker (A) selected when Legend can optionally be selected

    Blank/Not Applicable

    No Legend required, or not available for selected Actuator

    1197 - EN1197 - O I Vertical

    Must select Legend Colour

    1196 - EN1196 - O I Horizontal

    Must select Legend Colour

  • Legend Colour



    Select

    9

    Select (Not Applicable) unless Legend selected when Legend Colour must be selected

    (Not Applicable)

    No Legend Colour required - no Legend selected

    B - Black

    Required when a Legend is selected

    W - White

    Required when a Legend is selected

  • Cover



    Select

    10

    None

    No cover required

    G72 - Double Pole Body Size Snap On Cover

  • BioCote



    Select

    11

    No BioCote

    Without BioCote Antimicrobial Additive

    B - With BioCote

    Moulded components have BioCote additive with antimicrobial properties using BioCote silver ion technology
