Flex Cable Connectors

Water and dustproof to IP66, IP68, IP69K when mated with compatible connector

Quick turn locking ring with less than quarter turn locking and

[..]

Find a Distributor + My Products
  • Flex Cable Connectors
  • Water and dustproof to IP66, IP68, IP69K when mated with compatible connector
  • Quick turn locking ring with less than quarter turn locking and positive feedback
  • Plug or Socket
  • 2, 3, 6, 10, 32 Pole with leading Earth contact on 3 Pole versions
  • Screw, Crimp/Solder terminations available, depending on part code; Screw contacts supplied fitted, Crimp/Solder contacts and fitting tools available separately
  • Choice of body material depending on part code:
  • Plastic body (part codes prefixed PXP)

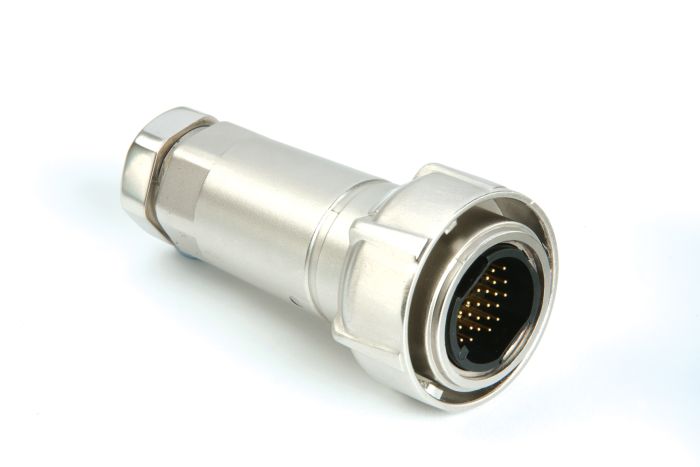

  • Metal body (part codes prefixed PXM). Cable Braid Termination option supplied with part codes suffixed /SN or available separately (part code PXM7090)
  • Choice of cable acceptance 5mm-15mm diameter depending on part code (see data for details)
  • PXP7088 Series Gland Packs available separately to accomodate all sizes
  • PXP7081/PXM7081 Sealing Cap available separately to maintain IP rating of unmated connectors
  • Mate with PXP7011/PXM7011 Series Flex In-Line and PXP7012/PXM7012 Series Front Panel Mount Connectors
3D CAD Models
