PXM7011/10P/CR/0911/SN

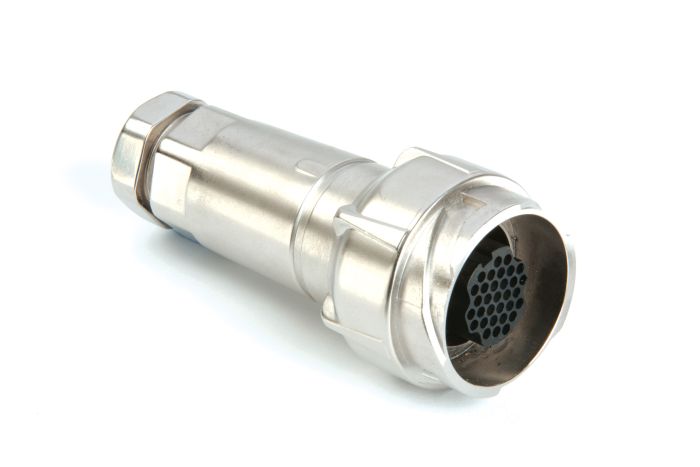

7000 Series Buccaneer

  • Inline Cable Connectors
  • Water and dustproof to IP66, IP68, IP69K when mated with compatible connector
  • Quick turn locking ring with less than quarter turn locking and positive feedback
  • Plug or Socket
  • 2, 3, 6, 10, 32 Contact with leading Earth contact on 3 Contact versions
  • Screw, Crimp/Solder terminations available, depending on part code; Screw contacts supplied fitted, Crimp/Solder contacts and fitting tools available separately
  • Choice of body material depending on part code:
  • Plastic body (part codes prefixed PXP)
  • Metal body (part codes prefixed PXM). Cable Braid Termination option supplied with part codes suffixed /SN or available separately (part code PXM7090)
  • Choice of cable acceptance 5mm-15mm diameter depending on part code (see data for details)
  • PXP7088 Series Gland Packs available separately to accomodate all sizes
  • PXP7082/PXM7082 Sealing Cap available separately to maintain IP rating of unmated connectors
  • Mate with PXP7010/PXM7010 Series Flex Connectors
